TRAMsoft GmbH - GARMIN Edge 800 (english)

Small GPS receiver, designed as personal training assistant and bike computer with high-sensitive antenna, large, easy to read color display, integrated base map, barometrical altimeter plus USB interface. Package with speed/cadence sensor and heart rate monitor. The Edge 800 has approx. 75 MB of built-in memory to store optional maps with even more detailed information, such as local roads, restaurants and points of interest. In addition, it has a slot for a standard µSD memory card.

As a personal training assistant, the GARMIN Edge 800 records the travelled path (track), the elevation profile, your heart rate, distance, time, computes the calories burned and helps to achieve your personal workout goals. The device is very easy to use, supports multiple languages and has an extremely sensitive antenna. It is the perfect partner for any biking activities. Beside the GPS receiver, the Edge 800 has a barometrical altimeter. The built-in USB interface supports data exchange with a PC.

Differences between the various Edge models:

All models provide similar functions; these are the main differences:

Feature / Model	Edge 205	Edge 305	Edge 500	Edge 605	Edge 705	Edge 800
Display	gray scale 128x160 pixels	gray scale 128x160 pixels	gray scale 128x160 pixels	color 176x220 pixels	color 176x220 pixels	color 160x240 pixels
Touchscreen	-	-	-	-	-	JA
Shows map	-	-	-	YES	YES	YES
Slot for µSD memory card	-	-	-	YES	YES	YES
Barometrical altimeter	-	YES	YES	-	YES	YES
Sensors	-	heart rate, speed/cadence	heart rate, speed/cadence	-	heart rate, speed/cadence	heart rate, speed/cadence
Data fields	23)¹	32	45	23)¹	32	69
Price	Discontinued	Discontinued	From CHF 248 From EUR 191	From CHF 288 From EUR 222	Discontinued	From CHF 428 From EUR 330

¹) No data fields related to sensors
Please find a table with detailed technical data in our Buyer's guide.

Contents: Features - Overview - Main Pages - Training Center - Prices - Options - Downloads - Order

Features:

Best suited to be fixed on a bike, robust, very handy
Easy to read color display with background illumination (160x240 pixels)
Very easy to use thanks to its touchscreen
Multilingual, graphical user interface in Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovak, Slovenian, Spanish and Swedish
Integrated 12 channel GPS receiver with very sensitive built-in antenna
Integrated base map
Approx. 75 MB of built-in memory to store even more detailed maps with local roads, points of interest etc. You may transfer these maps from a PC to the GPS
Slot for standard micro SD memory card ("TransFlash"). Memory cards are available as an option.
Premium chest belt with heart rate monitor. The chest belt uses a digitally coded signal, which means, once a heart beat sensor and the GPS have established a connection (known as being "paired"), the GPS will never receive a conflicting signal from another sensor. So you can exercise in close proximity to other sensors without fear of interference. Heart rate monitor either included in the package or available as an option.
Speed and cadence sensor: Measures the number of revolutions of the back wheel and the crank arm with magnets and a wireless sensor. Like the heart rate monitor, this sensor uses a digitally coded signal. Once paired with the Edge 800, the GPS will never receive a conflicting signal from another sensor. So you can exercise in close proximity to other sensors without fear of interference. Speed/cadence sensor either included in the package or available as an option.
Barometrical altimeter for precise elevation recording¹, accuracy ±3 m (10 feet), resolution ±30 cm (1 foot)
Short time to first fix (TTFF²: approx. 15 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 45 seconds after a cold start, meaning there are no valid coordinates of the satellites available)
Powered by built-in, rechargeable battery (lasts about 15 h), battery charger included
Firmware stored in Flash-Memory, can be updated by the user
Operating temperatures -20 .. 60°C (-4° .. 140°F)
USB interface (connection cable included)
Dimensions: 51x93x25 mm (2x3.7x1 inches)
Weight: 100 g (3.5 ounces)
Water resistant up to approx. 3 feet (1 meter) for about 30 minutes (IPX7)

¹) Even though a GPS provides accurate elevation information, the value slightly varies continuously. A barometrical altimeter is therefore more accurate, especially when summarizing elevation changes.
²) TTFF: Time To First Fix, time until the first information about the current position is acquired.

Information about your training:

Personal profile: Stores personal information such as gender, weight and date of birth (in order to calculate the calories burned)
Bike profile: Stores the weight of three different bikes.
Stop watch with split times (laps). Records split times either manually by pressing the "lap" key or automatically based on a user defined distance or position.
Auto pause: Stops the watch automatically if the current speed drops below a user defined value, e.g. when waiting at a red light or during a short break.
Virtual Partner: This unique feature helps you to achieve certain goals for your workout. Choose one of the following combinations:
1. Distance & Time: Set the distance for your workout and the time you intend to achieve. Forerunner computes the speed required.
2. Time & Speed: Set the time and the speed for your workout.
3. Distance & Speed: Set the distance and the speed for your workout.
The virtual partner will keep exactly the speed required to achieve the goal you have set. The Edge 800 will constantly measure your current speed and compares it to the virtual partner's speed. It will ask you to speed up or slow down as needed and it shows on the display whether you are ahead or behind your virtual partner.
History: The Edge 800 keeps track of your workouts. It stores the date, time, number of laps, duration, distance, average speed, calories burned, average and maximum heart rate on a daily basis. It also provides weekly overviews and running totals for the duration, distance and calories burned.
Navigation: Indicates your current location on the map and in relation to user defined waypoints or routes. You can create routes with these waypoints. The GPS will guide you from one waypoint to the next indicating current direction and distance. Number of routes only limited by memory space available.
Back to start: This feature helps you to travel all the way back to the starting point of your trip.
Stores up to 200 waypoints with name (up to 8 characters) and icon (choice of more than 30 symbols).
Stores up to 1'000 laps.
Supports metric and U.S. units.

To table of contents

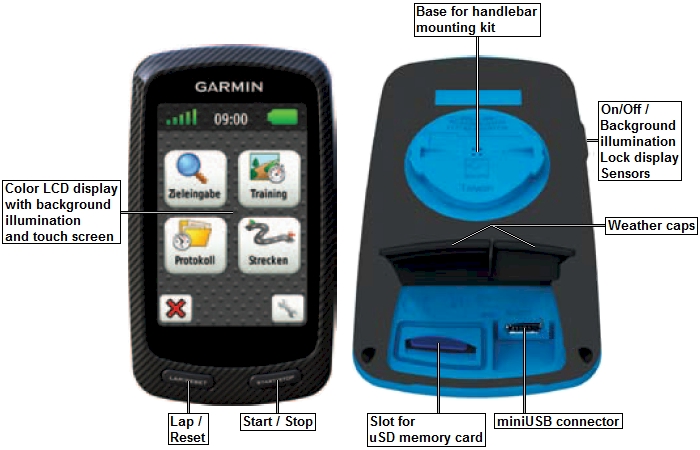

GARMIN Edge 800 overview:

To table of contents

Main pages of the GARMIN Edge 800:

Note: You may configure the main pages through options. The screenshots below are just examples, the actual appearance may vary from the pages shown below depending on the current settings. Especially the content of the data fields is user configurable. You can choose from 70 different values, see the table below.

Menu	Satellites	Settings

Strength of satellites' signals Current time Battery status Select destination Manage workouts History of the past workouts Manage courses Back Settings	Current position (coordinates) Current position of the satellites in the sky Current elevation above sea level Strength of satellites' signals Back Accuracy of current position information	Bike settings (see bike settings) System settings (see system settings) User profile (see user profile) Connecting to weight scale for ANT data exchange Information about the Edge including current firmware version Back

System Settings (1 of 2)	System Settings (2 of 2)	User Profile

GPS Mode, save current position, show satellites Display settings: Background illumination, background color, calibrate touchscreen, color mode Map: Orientation, auto-zoom, navigation text, map details etc. Routing: Calculation for bike, pedestrian or car, shorter time or shorter distance, avoidance etc. Tracking: Data storage location (internal memory or memory card), data averaging Back To next settings page	Routing: Calculation for bike, pedestrian or car, shorter time or shorter distance, avoidance etc. Tracking: Data storage location (internal memory or memory card), data averaging Units: Metric or statute, position format rsp. datum System setup: Language, tones, time format, auto power off Initial setup: Activate configuration wizard at next system start, factory reset Back To previous settings page	Gender Age Weight Height Activity class: From 0 (no activities) to 10 (daily activities, more than 15 hours per week) Back

Bike Settings (1 of 2)	Bike Settings (2 of 2)	Bike Profile

Training pages (manage data fields, map on/off, virtual partner on/off, elevation on/off) Profiles of 3 bikes Auto laps based on position or distance Auto pause when stopped or below a minimal speed Auto scroll on/off Back To next bike settings page	Auto pause when stopped or below a minimal speed Auto scroll on/off Reminder settings about start timer Heart rate: Pair with heart rate monitor, set 5 heart rate ranges Set 9 speed ranges Back To previous bike settings page	Bike (choose your own name) Weight of your bike Odometer (individual odometer for each bike) Back Supports 3 individual bike profiles

Display	Display	Heart Rate

Current heart rate Elapsed time since start of activity including paused times Distance travelled during this activity Duration of this activity without paused times To previous page To menu To next page Configure the display pages to show 1 to 8 data fields. Choose from the list of 70 values for each data field, see table below.	Duration of this activity without paused times Current speed Distance travelled during this activity Current time Calories burned during this activity To previous page To menu To next page Configure the display pages to show 1 to 8 data fields. Choose from the list of 70 values for each data field, see table below.	Current heart rate Elapsed time since start of activity including paused times Heart rate over time To previous page To menu To next page Configure the display pages to show 1 to 8 data fields. Choose from the list of 70 values for each data field, see table below.

Map	Navigation	Directions

Map (orientation north up or heading up) Current scale Current position (blue triangle) Note: This screen shot was taken with the optional product Topo Switzerland installed.	Direction Distance to next turn Estimated travel time to next turn Map with planned route (pink line) and turn (white arrow) Back Configure the display pages to show up to 4 data fields. Choose from the list of 70 values for each data field, see table below. Note: This screen shot was taken with the optional product Topo Switzerland installed.	Directions with distance and estimated travel time to next turns Back To previous directions To next directions

Virtual Partner	Elevation Profile	Entry

Preset speed (goal) Virtual partner (top), your own position (bottom) Time ahead or behind Distance ahead or behind To previous page To menu To next page	Current speed Current heading Elevation profile with scales To previous page To menu To next page Choose from the list of 70 values for each data field, see table below.	Text to enter Delete last character Characters Abort Switch to numbers Switch to special characters (Umlaute) Done

History Overview	History Detail	History Summary

List of activities with date, begin, distance and duration Back	Date and begin Activity details: Duration, distance, number of laps, maximum heart rate, accumulated elevation gain and elevation loss, average speed, maximum speed Back Next lap	Accumulated distance Accumulated duration Back

Data fields on pages with user selectable data fields:

For each data field, you can choose one from the following 70 values.
You can configure the device to show values in english or metric units.
FTP: Functional Threshold Power, used to automatically compute the seven power ranges.

No	Name	Explanation
1	Battery Level	Power status of the rechargable battery
2	Cadence	Revolutions of the crank arm rsp. number of steps per minute (requires speed and cadence sensor rsp. foot pod which is available as an option)
3	Cadence - Average	Average revolutions of the crank arm rsp. number of steps during this training unit (requires speed and cadence sensor rsp. foot pod which is available as an option)
4	Cadence - Lap	Average revolutions of the crank arm rsp. number of steps during the current lap (requires speed and cadence sensor rsp. foot pod which is available as an option)
5	Calories	Calories burned during this workout
6	Calories - Fat	Fat calories burned during this workout
7	Calories to Go	Remaining calories to burn during this workout if you have set a calories to burn target
8	Distance	Distance travelled during this workout
9	Distance - Lap	Distance travelled during the current lap
10	Distance - Last Lap	Distance travelled during last completed lap
11	Distance to destination	Remaining distance to your final destination
12	Distance to Go	Remaining distance during this workout if you have set a distance target
13	Distance to Next	Remaining distance to next point in route or course
14	Elevation	Current altitude above sea level
15	ETA at Destination	Estimated arrival time at final destination
16	ETA at Next	Estimated arrival time at next point in route or course
17	GPS Accuracy	The current accuracy of your GPS determined position
18	GPS Signal Strength	Strength of the GPS satellites signals
19	Grade	Current grade computed from elevation change over distance
20	Heading	The direction in which you are currently moving
21	Heart Rate	Current heart rate (heart beats per minute, bpm) (requires heart rate monitor which is included in the pack but is also available as an option)
22	Heart Rate - %HRR	Percentage of heart rate reserve (heart rate reserve, HRR = maximum heart rate minus resting heart rate; requires heart rate monitor which is included in the pack but is also available as an option)
23	Heart Rate - %Max	Percentage of maximum heart rate (requires heart rate monitor which is included in the pack but is also available as an option)
24	Heart Rate - Average	Average heart rate for this workout (requires heart rate monitor which is included in the pack but is also available as an option)
25	Heart Rate - Average %HRR	Average percentage of heart rate reserve for this workout (heart rate reserve, HRR = maximum heart rate minus resting heart rate; requires heart rate monitor which is included in the pack but is also available as an option)
26	Heart Rate - Average %Max	Average percentage of maximum heart rate for this workout (requires heart rate monitor which is included in the pack but is also available as an option)
27	Heart Rate - Lap	Average heart rate for this lap (requires heart rate monitor which is included in the pack but is also available as an option)
28	Heart Rate - Lap %HRR	Average percentage of heart rate reserve for this lap (heart rate reserve, HRR = maximum heart rate minus resting heart rate; requires heart rate monitor which is included in the pack but is also available as an option)
29	Heart Rate - Lap %Max	Average percentage of maximum heart rate for this lap (requires heart rate monitor which is included in the pack but is also available as an option)
30	Heart Rate Graph	Graphical representation of the heart rate zone over time (requires heart rate monitor which is included in the pack but is also available as an option)
31	Heart to Go	Difference between your current heart rate and the heart rate you have set as a target for this workout
32	Heart Rate Zone	Current heart rate zone (1..5). Default zones are based on the user profile, the maximum heart rate and the rest heart rate, but may be changed by the user (requires heart rate monitor which is included in the pack but is also available as an option)
33	Laps	Number of completed laps
34	Location at Destination	Last point of your route or course (final destination)
35	Location at Next	Next point of your route or course
36	Odometer	Running total of all workouts
37	Power	Current power output (requires heart rate monitor which is included in the pack but is also available as an option)
38	Power - %FTP	Current power output in %FTP ("Functional Threshold Power") (requires heart rate monitor which is included in the pack but is also available as an option)
39	Power - 30s Average	Average power output during the last 30 seconds moving (requires heart rate monitor which is included in the pack but is also available as an option)
40	Power - 3s Average	Average power output during the last 3 seconds moving (requires heart rate monitor which is included in the pack but is also available as an option)
41	Power - Average	Average power output during this workout (requires heart rate monitor which is included in the pack but is also available as an option)
42	Power - Average Last Lap	Average power output during the last completed lap (requires heart rate monitor which is included in the pack but is also available as an option)
43	Power - Kilojoules	Total (cumulative) power output during this workout (requires heart rate monitor which is included in the pack but is also available as an option)
44	Power - Lap	Average power output during this lap (requires heart rate monitor which is included in the pack but is also available as an option)
45	Power - Last Lap	Average power output for the last completed lap (requires heart rate monitor which is included in the pack but is also available as an option)
46	Power - Max	Maximum power output achieved during this workout (requires heart rate monitor which is included in the pack but is also available as an option)
47	Power - Max Last Lap	Maximum power output achieved during the last completed lap (requires heart rate monitor which is included in the pack but is also available as an option)
48	Power - Watts/kg	Power output in watts per kilogram
49	Power - Zone	Current power zone (1..7). The zones are based on your FTP or user settings (requires heart rate monitor which is included in the pack but is also available as an option)
50	Speed	Current speed
51	Speed - Average	Average speed since the last reset
52	Speed - Lap	Average speed for this lap
53	Speed - Last Lap	Average speed for the last completed lap
54	Speed - Maximum	Maximum speed since last reset
55	Sunrise	Time of sunrise at current position
56	Sunset	Time of sunset at current position
57	Temperature	Current ambient temperature (reading my differ from actual temperature if the device is exposed to direct sunlight or held in your hand)
58	Time	Duration of your current workout without times paused (stopwatch time)
59	Time - Average Lap	Average lap time for all completed laps
60	Time - Elapsed	Duration of your current workout including times paused
61	Time - Lap	Elapsed time for the current lap
62	Time - Last Lap	Duration of the last completed lap
63	Time of Day	Current time
64	Time to Destination	Estimated travel time to final destination
65	Time to Go	Remaining time during this workout if you have set a duration target
66	Time to Next	Estimated travel time to next point on route or course
67	Total Ascent	Total elevation gain for the current workout
68	Total Descent	Total elevation loss for the current workout
69	Vertical Speed	Rate of ascent or descent
70	Vertical Speed 30s - Avg	Average vertical speed during the last 30 seconds moving

To table of contents

Training Center:

You may download this software either from GARMIN's website or from our server, see Downloads below. The software requires a PC with Windows 2000 or later and an USB connector or an Intel-based Mac or PowerPC (G3 or newer) running OS X 10.4 or later with an USB connector. Training Center provides the following features:

Multi-lingual user interface: The software supports the languages English, French, German, Italian and Spanish.
User management: Supports multiple Edge devices.
Data exchange: Supports archiving of data collected with Edge 800 devices.
Data export: Supports data export as XML files.
Graphical data analysis: Supports graphical data analysis as shown below.

Examples:

Hint: Click on the images for an enlargement

User profile	Overview graphics	Overview graphics

Username, gender, weight, date of birth, speed zones etc.	Calendar, logs, track, graphical representation for elevation and pace	Calendar, logs, track, graphical representation for grade and speed

Overview values	Graph speed over time	Detailed map with track

Calendar, logs, totals, graphical representation	Graphical representation speed over time	If you own a map with detailed information (e.g Topo Switzerland), you can display the track on these maps as well

Training schedule	Workout (example 1)	Workout (example 2)

The Training Center helps you to manage work outs and training schedules.

To table of contents

Prices:

GARMIN Edge 800	CHF 428	\|	EUR 330
the package includes the following items: GARMIN Edge 800 Mounting kit for handle bar or stem Battery charger (100..240 V) USB cable for data exchange with and power supply from PC Download Training Center - a program for data exchange between an Edge 800 and a Windows PC or Mac (see "Training Center") We will install the most recent version of the firmware available at the time of shipment

GARMIN Edge 800 plus CDrom with Topo Switzerland	CHF 738	\|	EUR 569
the package includes the following items: Everything listed above under Edge 800 4.0 GB micro SD memory card including µSD to SD adapter Topographic Swiss map on CDrom (full coverage) [examples and details] We will install the most recent version of the firmware available at the time of shipment

GARMIN Edge 800 plus µSD memory card with Topo Switzerland	CHF 738	\|	EUR 569
the package includes the following items: Everything listed above under Edge 800 Topographic Swiss map on µSD memory card (full coverage) [examples and details] We will install the most recent version of the firmware available at the time of shipment

GARMIN Edge 800 Pack with heart rate monitor and speed and cadence sensor	CHF 528	\|	EUR 407
the package includes the following items: GARMIN Edge 800 Premium chest belt with heart rate monitor Speed and cadence sensor Mounting kit for handle bar or stem Battery charger (100..240 V) USB cable for data exchange with and power supply from PC Download Training Center - a program for data exchange between an Edge 800 and a Windows PC or Mac (see "Training Center") We will install the most recent version of the firmware available at the time of shipment

GARMIN Edge 800 Pack with heart rate monitor and speed and cadence sensor plus CDrom with Topo Switzerland	CHF 838	\|	EUR 647
the package includes the following items: Everything listed above under Edge 800 with heart rate monitor and speed and cadence sensor 4.0 GB micro SD memory card including µSD to SD adapter Topographic Swiss map on CDrom (full coverage) [examples and details] We will install the most recent version of the firmware available at the time of shipment

GARMIN Edge 800 Pack with heart rate monitor and speed and cadence sensor plus µSD memory card with Topo Switzerland	CHF 838	\|	EUR 647
the package includes the following items: Everything listed above under Edge 800 with heart rate monitor and speed and cadence sensor Topographic Swiss map on µSD memory card (full coverage) [examples and details] We will install the most recent version of the firmware available at the time of shipment

To table of contents

Options:

Power supply with USB connector (cable not included) (One such power supply comes with the Edge 800)	CHF 24	\|	EUR 19	[Picture and details]
USB cable for data exchange and power supply (One such cable comes with the Edge 800)	CHF 19	\|	EUR 15	[Picture and details]
Power cord for car cigarette lighter	CHF 34	\|	EUR 26	[Picture and details]
Powerkit including rechargeable battery, charger and foldable solar panel plus various adapters	CHF 129	\|	EUR 100	[Picture and details]
Chest belt with heart rate monitor (Such a heart rate monitor comes with the Edge 800 Pack)	CHF 86	\|	EUR 66	[Picture and details]
Belt for heart rate monitor (Such belt comes with the Edge 800 Pack)	CHF 17	\|	EUR 13	[Picture and details]
Premium chest belt with heart rate monitor (soft fabric strap for more comfort)	CHF 99	\|	EUR 76	[Picture and details]
Belt for premium heart rate monitor	CHF 69	\|	EUR 53	[Picture and details]
Speed and cadence sensor (Such a speed and cadence sensor comes with the Edge 800 Pack)	CHF 79	\|	EUR 61	[Picture and details]
Mounting set (One set with two mounting kits comes with the Edge 800)	CHF 18	\|	EUR 14	[Picture and details]
Straps for mounting set (One set with mounting straps comes with the Edge 800)	CHF 9	\|	EUR 7	[Picture and details]
Protective silicon skin	CHF 18	\|	EUR 14	[Picture and details]
Soft case	CHF 48	\|	EUR 37	[Picture and details]
Hard case	CHF 45	\|	EUR 35	[Picture and details]
4.0 GB micro SDHC memory card including µSD to SD adapter	CHF 19	\|	EUR 15	[Picture and details]
8.0 GB micro SDHC memory card including µSD to SD adapter	CHF 28	\|	EUR 22	[Picture and details]
16.0 GB micro SDHC memory card including µSD to SD adapter	CHF 81	\|	EUR 63	[Picture and details]

All options for the GARMIN Edge 800 in detail.

MapSource, various µSD memory cards, DVDs and CDroms with topographic and street maps (products on DVD or CDrom require a computer and a cable for data exchange).

To table of contents

Downloads:

Here we provide additional documentation and software updates:

Owner's manual (as PDF):
- English (638 kB)
- French (935 kB)
- German (905 kB)
- Italian (823 kB)
Quick start guide (as PDF):
- English (481 kB)
- French (547 kB)
- German (581 kB)
- Italian (545 kB)
Training Center software:
- Training Center for Windows V3.6.3 (Self-extracting ZIP-file, 40.8 MB; Windows 2000 or later)
- Training Center for Mac V2.1.5 (DMG-file, 51.4 MB; Intel-based or PowerPC G3 or later; Mac OS 10.4 or later)
- Garmin ANT Agent Version 2.11 (Self-extracting ZIP-file, 3.8 MB; Windows 2000 or later)
- Garmin ANT Agent with Training Center Version 2.11 (Self-extracting ZIP-file, 19.5 MB; Windows 2000 or later)
Firmware Upgrade V2.40 (Use Web-Updater to install this version)
List of changes made with firmware upgrades

If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.

To table of contents

Order:

To order the GARMIN Edge 800 as well as options please:

Click on the price or the shopping basket symbol to add the item you wish to purchase to the shopping basket. Your browser must accept cookies, otherwise the shopping basket won't work.
If the shopping basket does not work, please use this form.

Please read our terms and conditions.

To table of contents

Specifications and packaging of the products are subject to change without notice.
