GARMIN eMap

Hand held GPS receiver with large display, integrated world and Europe/Africa map plus serial interface.

The GARMIN eMap is easy to use, supports multiple languages, has a large, easy to read display, an extremely sensitive antenna, an integrated world map (overview) plus a base map of Europe, Africa and the near East. There is a slot for an additional memory module to store even more detailed information, such as local roads, restaurants and points of interest. eMap provides navigation information outdoors, in a car, in a train or even in an airplane (see MapSource examples). The built-in serial interface supports data exchange with a PC.


Contents: Features - Price - Options - Overview - Main Pages - Downloads - Order




GARMIN eMap

Features:

  • Portable, robust, easy to use
  • Large, easy to read display with background illumination (120x160 pixels)
  • Multilingual user interface in English, German, Italian and Spanish (requires firmware version V2.60 or later), the support for French was removed with firmware version V2.80
  • Integrated world map (overview) with countries of all continents including major cities
  • Integrated base map of Europe, Africa and the near East with countries, waters, towns, highways, major roads and city maps. Navigational information are available for the following countries: country list
  • Slot for additional memory module to download additional, even more detailed maps with roads, crossings and addresses of restaurants, public buildings, points of interest etc. from a PC.
    (Memory modules are available as an option)
  • Integrated 12 channel receiver with very sensitive built-in antenna
  • Connector for external antenna (antenna available as an option)
  • Powered by batteries (2x AA, last approx. 14 h) or by an external 12 V power source, e.g. from a car's lighter (power cord available as an option)
  • Short time to first fix (TTFF¹: approx. 15 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 45 seconds after a cold start, meaning there are no valid coordinates of the satellites available)
  • Supports the following protocols for data exchange with PC: NMEA 0183 with 4800 Baud, GARMIN, GARMIN DGPS, Text, RTCM IN, RTCM/NMEA and RTCM/TEXT
  • DGPS (Differential GPS) ready (GARMIN differential receiver available as an option)
  • Supports more than 100 different datum (coordinate systems)
  • Supports various display formats include the Swiss Grid
  • Memory gauge
  • Firmware stored in Flash-Memory, can be updated by the user
  • Operating temperatures -15 .. 70°C (5° .. 158°F)
  • Serial interface RS-232 (connection cable available as an option)
  • Dimensions: 141x60x22 mm (5.6x2.4x0.9 inches)
  • Weight: 150 g (5.3 ounces, without batteries)

¹) TTFF: Time To First Fix, time until the first information about the local position is acquired.

Information for navigation:

  • Information about the position of the GPS satellites and about the quality of the signals
  • World map with zoom function in the range of 1200 km to 30 m (800 mi to 120 ft)
  • Information on the map displayed in 5 levels of details
  • Distance measuring (direct distance)
  • Find waypoints, cities and exits
  • Extended search function for points of interest, addresses and intersections, if there is a MapSource map available in memory. These maps require an optional memory module, a Windows PC plus a connection cable and are available as options, see MapSource MetroGuide.
  • Stores up to 500 waypoints with name (up to 10 characters), icon (choice of 75 symbols), coordinates and altitude
  • Stores up to 50 routes with up to 50 waypoints per route with a maximum of 500 waypoints in total. Shows the current position in relation to these waypoints (direction and distance)
  • Current position (longitude, latitude, altitude)
  • Current accuracy of the position information
  • Current time and date
  • Current bearing
  • Current, average and maximum speed
  • Trip duration and distance (Odometer)
  • Stores 10 travelled routes (Tracks)
  • Time of sunrise and sunset, moonrise and moonset, current phase of the moon, constellation sun-earth-moon
  • Supports metric, nautical and U.S. units

To table of contents


Price:

To table of contents


Options:

Power cord for car cigarette lighter Add item to shopping basket CHF 39 / EUR 34 [Picture and details]
Combined cable for data exchange with PC and power cord for car cigarette lighter Add item to shopping basket CHF 59 / EUR 52 [Picture and details]
Protective rubber case for shock protection with opening for carrying strap Add item to shopping basket CHF 17 / EUR 15 [Picture and details]
Soft case Add item to shopping basket CHF 22 / EUR 19 [Picture and details]
Mounting adapter for larger handlebars (25..32 mm) Add item to shopping basket CHF 15 / EUR 13 [Picture and details]
Adhesive base for dashboard mounting kit to use it in a second vehicle Add item to shopping basket CHF 15 / EUR 13 [Picture and details]
External GPS antenna Add item to shopping basket CHF 44 / EUR 38 [Picture and details]
Extension cable for external GPS antenna Add item to shopping basket CHF 45 / EUR 39 [Picture and details]
Adapter cable BNC to MCX for external GPS antenna Add item to shopping basket CHF 29 / EUR 25 [Picture and details]
Adapter cable MCX to BNC for external GPS antenna Add item to shopping basket CHF 39 / EUR 34 [Picture and details]

All options for the GARMIN eMap in detail.

MapSource, various CDroms with world or country map (requires a Windows PC and a cable for data exchange)

To table of contents

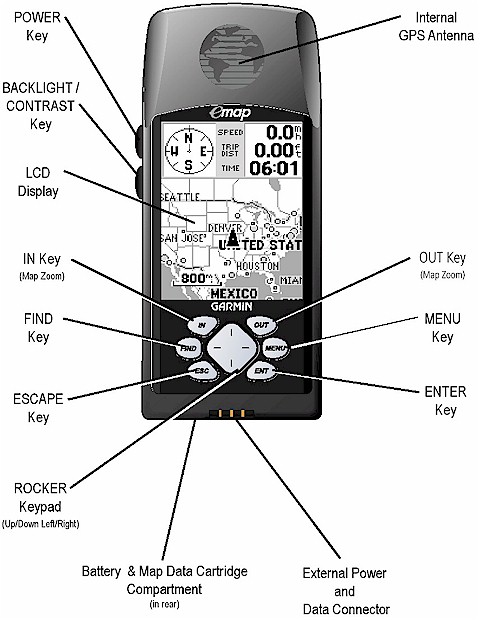

GARMIN eMap overview:

Buttons and connectors of the GARMIN eMap

To table of contents


Main pages of the GARMIN eMap:

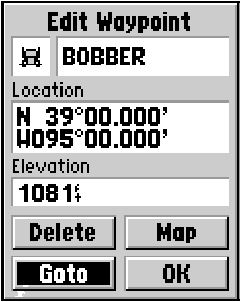

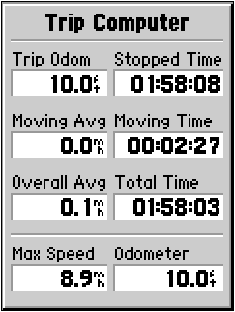

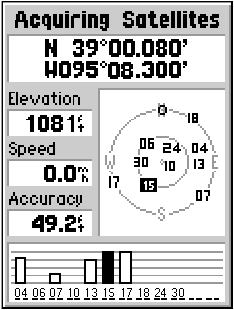

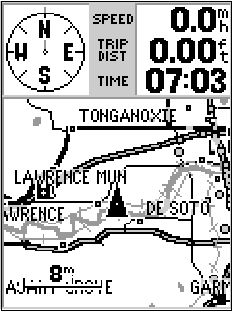

Satellites Map Trip Computer Waypoints
GARMIN eMap Satellites Info GARMIN eMap Map GARMIN eMap Trip Computer GARMIN eTrex Waypoint
  • State of the GPS receiver
  • Current position (coordinates)
  • Current altitude
  • Current speed
  • Accuracy of current position
  • Current position of the satellites
  • Signal strength
  • Current heading
  • Current speed
  • Travelled distance
  • Current time
  • Distance between current location and the location indicated by the pointer on the map
  • Map
  • Current scale
  • Travelled distance of the current trip
  • Time with no motion (stopped time)
  • Average speed without standing time
  • Moving time
  • Overall average speed (including stopped time)
  • Maximum speed
  • Overall travelled distance (odometer)
  • Icon of the waypoint (as shown on the map)
  • Name of the waypoint (up to 10 characters)
  • Coordinates of the waypoint
  • Altitude of the waypoint

To table of contents


Downloads:

Here we provide additional documentation and software updates related to the eMap.

Get Acrobat Reader If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.

To table of contents


Order:

To order options for the GARMIN eMap please:

  1. Click on the price or the shopping basket symbol Show shopping basket to add the item you wish to purchase to the shopping basket. Your browser must accept cookies, otherwise the shopping basket won't work.
  2. If the shopping basket does not work, please use this form.

Please read our terms and conditions.

To table of contents


Specifications and packaging of the products are subject to change without notice.
