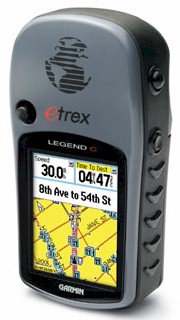

GARMIN eTrex Legend Cx

Hand held GPS receiver with large, easy to read color display, integrated world and Europe/Africa map, automatic route calculation plus USB interface.

The GARMIN eTrex Legend Cx is very easy to use thanks to its click stick and user friendly, graphical interface. It supports multiple languages, has an integrated world map (overview) plus a base map of Europe, Africa and the near East. In addition, the Legend Cx has a slot for a standard micro SD memory card next to the battery compartment to store even more detailed information, such as local roads, restaurants and points of interest, a 32 MB memory card is included. The GARMIN eTrex Legend Cx provides automatic route calculation and visual guidance. The extremely sensitive antenna provides navigation information outdoors, in a car, in a train or even in an airplane (see MapSource examples). The built-in USB interface supports data exchange with a PC.

Features: Portable, robust, to be operated with one hand (buttons are located ergonomically on each side of the unit) Large, easy to read color display with background illumination (176x220 pixels) Easy to use thanks to its click stick and user friendly, graphical interface Multilingual user interface in Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Spanish, and Swedish; Vista C also supports Turkish Integrated 12 channel GPS receiver with very sensitive built-in antenna Integrated world map (overview) with countries of all continents including major cities Integrated base map of Europe, Africa and the near East with countries, waters, towns, highways, major roads and city maps. Navigational information are available for the following countries: country list Slot for standard micro SD memory card ("TransFlash") to store additional, even more detailed maps with roads, crossings and addresses of restaurants, public buildings, points of interest etc. from a PC. A 32 MB memory card is included. Larger memory cards are available as an option. See also our attractive bundels with larger memory cards. Routing speed: 1.91 (see GPS Routing Speed for details). Powered by batteries (2x AA, last about 30 h), by USB cable from a computer (connection cable included in package) or by an external 12 V power source, e.g. from a car's cigarette lighter (power cord available as an option) Short time to first fix (TTFF¹: approx. 15 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 45 seconds after a cold start, meaning there are no valid coordinates of the satellites available) Supports more than 100 different datum (coordinate systems) Supports various display formats include the Swiss Grid (CH-1903) Firmware stored in Flash-Memory, can be updated by the user Operating temperatures -15 .. 70°C (5° .. 158°F) USB interface (connection cable included) Dimensions: 105x55x31 mm (4.14x2.15x1.21 inches) Weight (without batteries): 120 g (4.23 ounces) Water resistant up to approx. 3 feet (1 meter) for about 30 minutes ¹) TTFF: Time To First Fix, time until the first information about the local position is acquired. Information for navigation: Stores up to 500 waypoints with name (up to 10 characters), icon (choice of 180 symbols) and coordinates Stores up to 50 reversible routes with up to 250 waypoints per route World map with zoom function in the range of 800 km to 5 m (500 mi to 20 ft) Information on the map displayed in 5 levels of details Find waypoints, favorites, cities and exits Automatic route calculation and extended search function for points of interest, addresses and intersections, if there is a MapSource map available in memory. These maps require a Windows PC plus a connection cable and are available as options, see MapSource City Navigator. Current position (longitude, latitude, altitude) Current accuracy of the position information Current time Current bearing Current, average and maximum speed Trip duration and distance (Odometer) Records the travelled path (track), capacity 10'000 track points Stores 20 travelled routes (tracks) with up to 500 track points for each track Proximity alarms Supports metric and U.S. units Additional features: Calendar Alarm clock Stop watch Calculator Time of sunrise and sunset, moonrise and moonset, current phase of the moon, constellation sun-earth-moon Various games

To table of contents

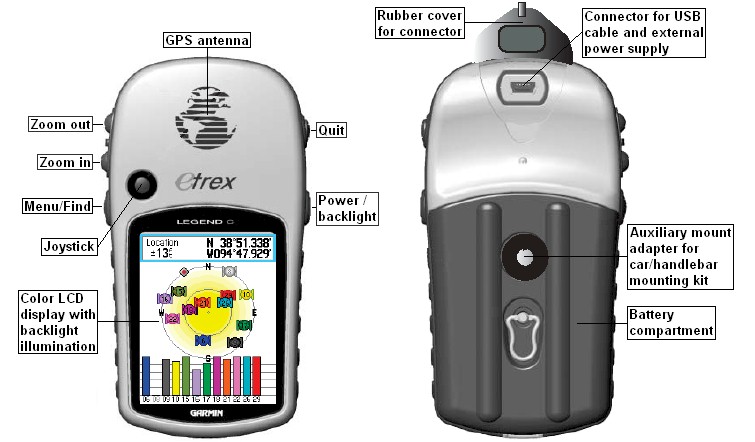

GARMIN eTrex Legend Cx overview:

To table of contents

Main pages of the GARMIN eTrex Legend Cx:

Note: You may configure the main pages through options. The screenshots below are just examples, the actual appearance may vary from the pages shown below depending on the current settings. Especially the content of the data fields is user configurable. You can choose from 36 different values¹).

Main Menu	Satellites	Map	Navigation
Satellites status information Trip computer settings Save current location as waypoint Find waypoints, favorites, cities and exits (extended search functions with MapSource) Manage travelled pathes (tracks) Manage routes Graphical representation "highway" System setup Proximity alarms Calendar Alarm clock Calculator Stop watch Constellation Earth/Sun/Moon Time information for hunting and fishing Games	Accuracy of current position information Current position (coordinates) Constellation of the satellites Strength of satellites' signals	Current speed Current heading Navigation directions Map with current position For each data field, you can choose from 36 different values.1)	Current speed Distance to next turn Estimated arrival time at final destination Estimated remaining travel time to next turn Compass ring with bearing to next turn For each data field, you can choose from 36 different values.1) You can chose between 3 and 4 data fields.



Trip Computer (small numbers)	Trip Computer (big numbers)	Route	Turns
Travelled trip distance Maximum speed Moving time Average speed (moving time only) Stopped time Average speed (total time) Current elevation Accumulated travelled distance (Odometer) For each data field, you can choose from 36 different values.1)	Travelled trip distance Current speed Moving time For each data field, you can choose from 36 different values.1)	Navigation directions Address of destination (pointer) Coordinates of destination (pointer) Direction to destination Distance to destination (direct line) Map with current position and suggested route	Navigation directions with turn, distance and estimated travel time, rsp. estimated arrival time Final destination with distance and estimated travel time, rsp. estimated arrival time

Data fields:

Selection 1: For each data field, you can choose one from the following 36 values.

No	Name	Explanation
1	Accuracy GPS	The current accuracy of your GPS determined position.
2	Bearing	The compass direction from a position to a destination measured to the nearest degree; also called an azimuth. In a GPS receiver, bearing usually refers to the direction to a waypoint.
3	Course	The direction from the beginning landmark of a course to its destination (measured in degrees, radians, or mils) or the direction from a route waypoint to the next waypoint in the route segment.
4	Distance to next	Current distance to the next waypoint or turn.
5	Distance to destination	Current distance to the final destination.
6	ETA at next	Estimated arrival time at the next turn.
7	ETA at destination	Estimated arrival time at the final destination.
8	Elevation	Current altitude above sea level.
9	Glide ratio	The ratio of horizontal distance travelled to vertical distance.
10	Glide ratio to destination	The glide ratio required to descend from your current position and elevation to the destination's elevation.
11	Heading	The direction in which you are currently moving.
12	Location (lat/lon)	Current location as latitude/longitude coordinates.
13	Location (selected)	Current location indicated in the selected format (datum).
14	Odometer	Total distance travelled since last reset*).
15	Off Course	The distance you are off the desired course.
16	Pointer	Arrow that indicates the direction to travel to the next point on a route.
17	Speed	Current speed.
18	Speed - Maximum	Maximum speed since last reset*).
19	Speed - Moving Avg.	Average speed without the time with no motion since the last reset*).
20	Speed - Overall Avg.	Average speed including the time with no motion since the last reset*).
21	Sunrise	Time of sunrise at the current position.
22	Sunset	Time of sunset at the current position.
23	Time To Destination	Estimated travel time to the final destination.
24	Time To Next	Estimated travel time to the next waypoint (turn, crossing etc.).
25	Time of Day	Current time.
26	To Course	Direction to the planned course.
27	Trip Odometer	Travelled distance since last reset*).
28	Trip Time - Moving	Time with motion since last reset*).
29	Trip Time - Stopped	Time without motion since last reset*).
30	Trip Time - Total	Total time since last reset*).
31	Turn	The direction of and the distance to the next turn on a route.
32	Velocity Made Good	The rate of closure to the destination, based upon your current speed and course.
33	Vertical Speed	Current ascending or descending speed.
34	Vertical Speed To Dest	The measurement of your rate of ascent to a predetermined elevation.
35	Waypoint At Dest	Name of the waypoint at the final destination.
36	Waypoint At Next	Name of the next waypoint.

*) You may reset the trip-counters, the Odometer and the Maximum Speed independently of each other.

To table of contents

Price:

• GARMIN eTrex Legend C/Cx:
  These models have been discontinued; however, you can still order options for the eTrex Legend C/Cx.

To table of contents

Options:

Auto-Pack for eTrex Legend Cx, includes: Dashboard mounting kit with adhesive base Power cord for car cigarette lighter Software MapSource City Navigator Europe NT including unlock code			CHF 178	/	EUR 137	[Picture and details]
4.0 GB micro SDHC memory card including µSD to SD adapter (for eTrex Legend Cx only)			CHF 19	/	EUR 15	[Picture and details]
Power cord for car cigarette lighter			CHF 56	/	EUR 43	[Picture and details]
USB cable for data exchange and power supply (One such cable is included)			CHF 19	/	EUR 15	[Picture and details]
Holster with carabiner			CHF 29	/	EUR 22	[Picture and details]
Belt clip			CHF 27	/	EUR 21	[Picture and details]
Retractable lanyard			CHF 39	/	EUR 30	[Picture and details]
Mounting kit for handlebar			CHF 27	/	EUR 21	[Picture and details]
Mounting adapter for larger handlebars (25..32 mm)			CHF 17	/	EUR 13	[Picture and details]
Mounting kit with suction cup for windshields in cars etc.			CHF 49	/	EUR 38	[Picture and details]
Mounting kit for dashboard (One such mounting kit is included in the Auto-Pack)			CHF 35	/	EUR 27	[Picture and details]
Adhesive base for dashboard mounting kit to use it in a second vehicle			CHF 22	/	EUR 17	[Picture and details]
Removable base for seemless switching between multiple vehicles			CHF 49	/	EUR 38	[Picture and details]

All options for the GARMIN eTrex Legend C / Legend Cx in detail.

MapSource, various CDroms with world or country map (requires a Windows PC and a cable for data exchange)

To table of contents

Downloads:

Here we provide additional documentation and software updates:

eTrex Legend C:

• Owner's manual and reference guide (in PDF format, 1.9 MB)
• Firmware Upgrade V2.70 (Self-extracting ZIP-file, requires a PC and a connection cable, 1.8 MB)
• List of changes made with Firmware Upgrades

eTrex Legend Cx:

• Owner's manual and reference guide (in PDF format, 1.4 MB)
• Quick reference guide (in PDF format, 397 kB)
• Firmware Upgrade V3.40 (Self-extracting ZIP-file, requires a PC and a connection cable, 2.0 MB)
• List of changes made with Firmware Upgrades

If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.

To table of contents

Order:

To order options for GARMIN eTrex Legend C/Cx please:

1. Click on the price or the shopping basket symbol to add the item you wish to purchase to the shopping basket.
2. If the shopping basket does not work, please use this form.

Please read our terms and conditions.
