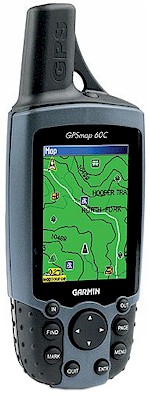

GARMIN GPSMAP60C / GPSMAP60Cx

Hand held GPS receiver with large color display, integrated world and Europe/Africa map, auto-routing, USB and serial interface.

The GARMIN GPSMAP60C / GPSMAP60Cx is very easy to use thanks to its rocker key and user friendly graphical interface. It supports multiple languages, has an integrated world map (overview) plus a base map of Europe, Africa and the near East. In addition, the GPSMAP60C has 56 MB of built-in memory to store even more detailed information, such as local roads, restaurants and points of interest. The GPSMAP60Cx has a slot for a standard micro SD memory card in the battery compartment and comes with a 64 MB memory card. The extremely sensitive antenna provides navigation information outdoors, in a car, in a train or even in an airplane (see MapSource examples). Because of the very low power consumption, the batteries of the GPSMAP60C / GPSMAP60Cx last up to 30 hours. The built-in serial and USB interface support data exchange with a PC.

Note: The GPSMAP60CS / GPSMAP60CSx provides the following enhancements over this model: An integrated electronic compass and an integrated barometrical altimeter.

Contents: Features - Overview - Main Pages - Prices - Options - Downloads - Order

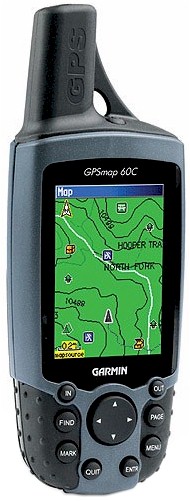

(Click on the image for an enlargement)

Features:

Portable, easy to use, robust, waterproof to IPX-7 standards (withstands 30 minutes under water up to 1 meter (3 feet) deep)
Large, easy to read color display with background illumination (256 colors, 160x240 pixel)
Easy to use thanks to its rocker key and push buttons and its user friendly, graphical interface
Multilingual user interface in Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Spanish, and Swedish
Integrated 12 channel GPS receiver with very sensitive built-in antenna
(the GPSMAP60Cx is equipped with the even more powerful SiRFstar III GPS antenna)
Integrated world map (overview) with countries of all continents including major cities
Integrated base map of Europe, Africa and the near East with countries, waters, towns, highways, major roads and city maps. Navigational information are available for the following countries: country list
Memory to store additional, even more detailed maps with roads, crossings and addresses of restaurants, public buildings, points of interest etc. from a PC:
- GPSMAP60C: Integrated 56 MB memory.
- GPSMAP60Cx: Slot for standard micro SD memory card ("TransFlash"). A 64 MB memory card is included. Larger memory cards are available as an option. See also our attractive bundels with larger memory cards.
Powered by batteries (2x AA, last about 30 h) or by an external 12 V power source, e.g. from a car's cigarette lighter (power cord available as an option)
Short time to first fix (TTFF¹: approx. 15 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 45 seconds after a cold start, meaning there are no valid coordinates of the satellites available)
Supports the following protocols for data exchange with PC: NMEA 0183 with 4800 Baud, GARMIN, GARMIN DGPS, Text, RTCM IN, RTCM/NMEA and RTCM/TEXT
Supports WAAS (improves accuracy of position indication from typical better than 15 m (49 feet) to typical better than 3 m (10 feet))
DGPS (Differential GPS) ready (GARMIN differential receiver available as an option)
Supports more than 100 different datum (coordinate systems)
Supports various display formats include the Swiss Grid
Firmware stored in Flash-Memory, can be updated by the user
Operating temperatures -15 .. 70°C (5° .. 158°F)
USB and serial interface RS-232 (USB connection cable included)
Dimensions: 180x61x33 mm (2.4x6.1x1.3 inches)
Weight: 150 g (5.3 ounces, without batteries)

¹) TTFF: Time To First Fix, time until the first information about the current position is acquired.

Information for navigation:

Stores up to 1000 waypoints with name (up to 10 characters), icon (choice of 75 symbols) and coordinates
Stores up to 50 reversible routes with up to 250 waypoints each.
World map with zoom function in the range of 800 km to 30 m (500 mi to 120 ft)
Information on the map displayed in 5 levels of details
Find waypoints, favorites, cities and exits
Extended search function for points of interest, addresses and intersections, if there is a MapSource map available in memory. These maps require a Windows PC plus a connection cable and are available as options, see MapSource.
Current position (longitude, latitude, altitude)
Current accuracy of the position information
Current time
Current bearing
Current, average and maximum speed
Trip duration and distance (Odometer)
Records the travelled path (track), capacity 10'000 track points
Stores 20 travelled routes (tracks) with up to 500 track points for each track
Supports metric and U.S. units

Additional features:

Calendar
Alarm clock (GPSMAP60C only)
Stop watch
Calculator
Time of sunrise and sunset, moonrise and moonset, current phase of the moon, constellation sun-earth-moon
Various games

To table of contents

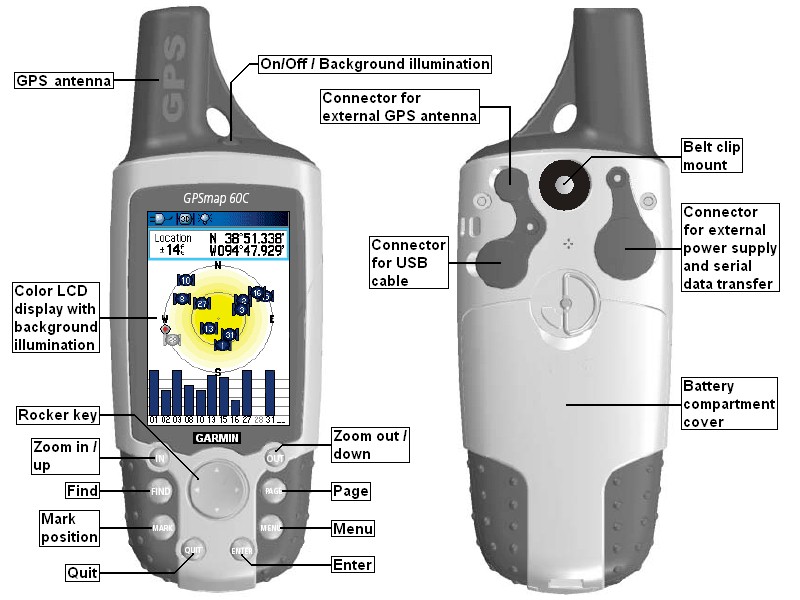

GARMIN GPSMAP60C / GPSMAP60Cx overview:

[ Unit features of the GARMIN GPSMAP60C ]

To table of contents

Main pages of the GARMIN GPSMAP60C / GPSMAP60Cx:

Note: You may configure the main pages through options. The screenshots below are just examples, the actual appearance may vary from the pages shown below depending on the current settings. Especially the content of the data fields is user configurable. You can choose from 39 different values¹).

Main Menu	Satellites	Navigation	Trip Computer

Recording of the travelled path (tracks) Manage Routes Graphical representation "highway" System settings Proximity Calendar Alarm clock (GPSMAP60C only) Calculator Stop watch Information about the sun-earth-moon constellation Information regarding hunting and fishing Games Current time and date	Accuracy of current position information Current position (coordinates) Constellation of the satellites Strength of satellites' signals	Current speed Distance to the next turn Estimated arrival time at the final destination Estimated time to the next turn Bearing to the next turn For each data field, you can choose from 39 different values¹)	Travelled trip distance Maximum speed Moving time Average speed (moving time only) Stopped time Average speed (total time) Elevation Accumulated travelled distance (Odometer) For each data field, you can choose from 39 different values¹) You may choose to display 3 large data fields instead of 8 small data fields.

Main Menu

Satellites

Navigation

Trip Computer

Recording of the travelled path (tracks)
Manage Routes
Graphical representation "highway"
System settings
Proximity
Calendar
Alarm clock (GPSMAP60C only)
Calculator
Stop watch
Information about the sun-earth-moon constellation
Information regarding hunting and fishing
Games
Current time and date

Accuracy of current position information
Current position (coordinates)
Constellation of the satellites
Strength of satellites' signals

Current speed
Distance to the next turn
Estimated arrival time at the final destination
Estimated time to the next turn
Bearing to the next turn

For each data field, you can choose from 39 different values¹)

Travelled trip distance
Maximum speed
Moving time
Average speed (moving time only)
Stopped time
Average speed (total time)
Elevation
Accumulated travelled distance (Odometer)

For each data field, you can choose from 39 different values¹)

You may choose to display 3 large data fields instead of 8 small data fields.

Map	Autozoom	Route	Highway

Current speed Current heading Guidance message Map with current position (map may be oriented "north up" or "track up") Current scale For each data field, you can choose from 39 different values¹)	Shortly before you arrive at the next turn, the GPS shows a map at a very small scale and indicates the route in great details ("autozoom"). Guidance message with road names Distance to the next turn Estimated remaining time until the next turn Very detailed map with route	List of turns with direction, distance and estimated remaining time until turn GPS computes routes, optimized on time, distance or time for calculation	Current speed Distance to the next turn Current heading Current time Graphical perspective of the route For each data field, you can choose from 39 different values¹)

Map

Autozoom

Route

Highway

Current speed
Current heading
Guidance message
Map with current position (map may be oriented "north up" or "track up")
Current scale

For each data field, you can choose from 39 different values¹)

Shortly before you arrive at the next turn, the GPS shows a map at a very small scale and indicates the route in great details ("autozoom").

Guidance message with road names
Distance to the next turn
Estimated remaining time until the next turn
Very detailed map with route

List of turns with direction, distance and estimated remaining time until turn
GPS computes routes, optimized on time, distance or time for calculation

Current speed
Distance to the next turn
Current heading
Current time
Graphical perspective of the route

For each data field, you can choose from 39 different values¹)

Data fields:

Selection 1: For each data field, you can choose one from the following 39 values.

No Name Explanation

1 Accuracy GPS The current accuracy of your GPS determined position.

2 Bearing The compass direction from a position to a destination measured to the nearest degree; also called an azimuth. In a GPS receiver, bearing usually refers to the direction to a waypoint.

3 Course The direction from the beginning landmark of a course to its destination (measured in degrees, radians, or mils) or the direction from a route waypoint to the next waypoint in the route segment.

4 Depth Depth of water (requires NMEA input from a sonar device).

5 Distance to next Current distance to the next waypoint or turn.

6 Distance to destination Current distance to the final destination.

7 ETA at next Estimated arrival time at the next turn.

8 ETA at destination Estimated arrival time at the final destination.

9 Elevation Current altitude above sea level.

10 Glide ratio The ratio of horizontal distance travelled to vertical distance.

11 Glide ratio to destination The glide ratio required to descend from your current position and elevation to the destination's elevation.

12 Heading The direction in which you are currently moving.

13 Location (lat/lon) Current location as latitude/longitude coordinates.

14 Location (selected) Current location indicated in the selected format (datum).

15 Odometer Total distance travelled since last reset*).

16 Off Course The distance you are off the desired course.

17 Pointer Arrow that indicates the direction to travel to the next point on a route.

18 Speed Current speed.

19 Speed - Maximum Maximum speed since last reset*).

20 Speed - Moving Avg. Average speed without the time with no motion since the last reset*).

21 Speed - Overall Avg. Average speed including the time with no motion since the last reset*).

22 Sunrise Time of sunrise at the current position.

23 Sunset Time of sunset at the current position.

24 Time To Destination Estimated travel time to the final destination.

25 Time To Next Estimated travel time to the next waypoint (turn, crossing etc.).

26 Time of Day Current time.

27 To Course Direction to the planned course.

28 Trip Odometer Travelled distance since last reset*).

29 Trip Time - Moving Time with motion since last reset*).

30 Trip Time - Stopped Time without motion since last reset*).

31 Trip Time - Total Total time since last reset*).

32 Turn The direction of and the distance to the next turn on a route.

33 Velocity Made Good The rate of closure to the destination, based upon your current speed and course.

34 Vertical Speed Current ascending or descending speed.

35 Vertical Speed To Dest The measurement of your rate of ascent to a predetermined elevation.

36 Water Speed Current speed over water (requires an external data acquisition device).

37 Water Temperature Temperature of the water (requires an external data acquisition device).

38 Waypoint At Dest Name of the waypoint at the final destination.

39 Waypoint At Next Name of the next waypoint.

*) You may reset the trip-counters, the Odometer and the Maximum Speed independently of each other.

No	Name	Explanation
1	Accuracy GPS	The current accuracy of your GPS determined position.
2	Bearing	The compass direction from a position to a destination measured to the nearest degree; also called an azimuth. In a GPS receiver, bearing usually refers to the direction to a waypoint.
3	Course	The direction from the beginning landmark of a course to its destination (measured in degrees, radians, or mils) or the direction from a route waypoint to the next waypoint in the route segment.
4	Depth	Depth of water (requires NMEA input from a sonar device).
5	Distance to next	Current distance to the next waypoint or turn.
6	Distance to destination	Current distance to the final destination.
7	ETA at next	Estimated arrival time at the next turn.
8	ETA at destination	Estimated arrival time at the final destination.
9	Elevation	Current altitude above sea level.
10	Glide ratio	The ratio of horizontal distance travelled to vertical distance.
11	Glide ratio to destination	The glide ratio required to descend from your current position and elevation to the destination's elevation.
12	Heading	The direction in which you are currently moving.
13	Location (lat/lon)	Current location as latitude/longitude coordinates.
14	Location (selected)	Current location indicated in the selected format (datum).
15	Odometer	Total distance travelled since last reset*).
16	Off Course	The distance you are off the desired course.
17	Pointer	Arrow that indicates the direction to travel to the next point on a route.
18	Speed	Current speed.
19	Speed - Maximum	Maximum speed since last reset*).
20	Speed - Moving Avg.	Average speed without the time with no motion since the last reset*).
21	Speed - Overall Avg.	Average speed including the time with no motion since the last reset*).
22	Sunrise	Time of sunrise at the current position.
23	Sunset	Time of sunset at the current position.
24	Time To Destination	Estimated travel time to the final destination.
25	Time To Next	Estimated travel time to the next waypoint (turn, crossing etc.).
26	Time of Day	Current time.
27	To Course	Direction to the planned course.
28	Trip Odometer	Travelled distance since last reset*).
29	Trip Time - Moving	Time with motion since last reset*).
30	Trip Time - Stopped	Time without motion since last reset*).
31	Trip Time - Total	Total time since last reset*).
32	Turn	The direction of and the distance to the next turn on a route.
33	Velocity Made Good	The rate of closure to the destination, based upon your current speed and course.
34	Vertical Speed	Current ascending or descending speed.
35	Vertical Speed To Dest	The measurement of your rate of ascent to a predetermined elevation.
36	Water Speed	Current speed over water (requires an external data acquisition device).
37	Water Temperature	Temperature of the water (requires an external data acquisition device).
38	Waypoint At Dest	Name of the waypoint at the final destination.
39	Waypoint At Next	Name of the next waypoint.

To table of contents

Prices:

GARMIN GPSMAP60Cx Standard: CHF 378 / EUR 260
this package includes the following items:
- GARMIN GPSMAP60Cx
- 64 MB micro SD memory card
- USB connection cable for data exchange with a PC
- Software MapSource Trip and Waypoint Manager (supports data exchange between GPS device and a PC, but has no transferable maps)
- Belt clip
- Operating instructions in German and English
- We install the most recent version of the firmware available at the time of shipment
- We configure the GPS before shipping, so it comes ready to use
GARMIN GPSMAP60Cx Standard plus Swiss-Topo Full: CHF 648 / EUR 446
this package includes the following items:
- Everything listed above under GPSMAP60Cx Standard
- 2.0 GB micro SD memory card including µSD to SD adapter
- Topographic Swiss map (full coverage) [examples and details]
GARMIN GPSMAP60Cx Auto-Pack: CHF 508 / EUR 350
this package includes the following items:
- GARMIN GPSMAP60Cx
- 2.0 GB micro SD memory card including µSD to SD adapter
- Dashboard mounting kit with adhesive base
- Power cord for car cigarette lighter
- Software MapSource City Navigator Europe NT including unlock code for all regions
- USB connection cable for data exchange with a PC
- Software MapSource Trip and Waypoint Manager (supports data exchange between GPS device and a PC, but has no transferable maps)
- Belt clip
- Operating instructions in German and English
- We install the most recent version of the firmware available at the time of shipment
- We configure the GPS before shipping, so it comes ready to use
GARMIN GPSMAP60Cx Auto-Pack plus Swiss-Topo Full: CHF 798 / EUR 549
this package includes the following items:
- Everything listed above under GPSMAP60Cx Auto-Pack (including the 2.0 GB micro SD memory card and µSD to SD adapter)
- Topographic Swiss map (full coverage) [examples and details]
GARMIN GPSMAP60C:
This model has been discontinued; however, you can still order options for the GPSMAP60C.

To table of contents

Options:

Auto-Pack for GARMIN GPSMAP60Cx, including:

Dashboard mounting kit with adhesive base

Power cord for car cigarette lighter

Software MapSource City Navigator Europe NT including unlock code

CHF 188 / EUR 129 [Picture and details]

1.0 GB micro SD memory card including µSD to SD adapter
(for GPSMAP60Cx only) CHF 7 / EUR 5 [Picture and details]

2.0 GB micro SD memory card including µSD to SD adapter
(for GPSMAP60Cx only; one such micro SD memory card is included in the GPSMAP60Cx-Packs) CHF 10 / EUR 7 [Picture and details]

Serial connection cable for data exchange with a PC CHF 53 / EUR 36 [Picture and details]

USB cable for data exchange with PC
(One such cable is included in the GPSMAP60C / GPSMAP60Cx) CHF 19 / EUR 13 [Picture and details]

Power cord for car cigarette lighter
(One such cable is included in the Auto-Packs) CHF 36 / EUR 25 [Picture and details]

Combined cable for data exchange with PC and power cord for car cigarette lighter CHF 68 / EUR 47 [Picture and details]

USB cable for data exchange and power supply CHF 143 / EUR 98 [Picture and details]

External power supply 220 V CHF 29 / EUR 20 [Picture and details]

External power supply 220 V combined with serial cable for data exchange with PC CHF 66 / EUR 45 [Picture and details]

Soft case CHF 29 / EUR 20 [Picture and details]

Carabiner CHF 29 / EUR 20 [Picture and details]

Belt clip
(One such belt clip is included in the GPSMAP60C / GPSMAP60Cx) CHF 22 / EUR 15 [Picture and details]

Retractable lanyard CHF 39 / EUR 27 [Picture and details]

Mounting kit for handlebar CHF 27 / EUR 19 [Picture and details]

Mounting adapter for larger handlebars (25..32 mm) CHF 17 / EUR 12 [Picture and details]

Mounting kit with suction cup for windshields in cars etc. CHF 49 / EUR 34 [Picture and details]

Mounting kit for dashboard
(One such mounting kit is included in the Auto-Packs) CHF 35 / EUR 24 [Picture and details]

Adhesive base for dashboard mounting kit to use it in a second vehicle
(One such adhesive base is included in the Auto-Packs) CHF 22 / EUR 15 [Picture and details]

Removable base for seemless switching between multiple vehicles CHF 49 / EUR 34 [Picture and details]

External GPS antenna CHF 59 / EUR 41 [Picture and details]

Extension cable for external GPS antenna CHF 56 / EUR 39 [Picture and details]

Adapter cable BNC to MCX for external GPS antenna CHF 36 / EUR 25 [Picture and details]

Adapter cable MCX to BNC for external GPS antenna CHF 39 / EUR 27 [Picture and details]

All options for the GARMIN GPSMAP60C / GPSMAP60Cx in detail.

MapSource, various CDroms with world or country map (requires a Windows PC and a cable for data exchange).

To table of contents

Downloads:

Here we provide additional documentation and software updates:

GPSMAP60C:

Owner's manual (in PDF format, 1.4 MB)
Firmware Upgrade V4.20 (Self-extracting ZIP-file, requires a PC and a connection cable, 1.8 MB)
List of changes made with Firmware Upgrades

GPSMAP60Cx:

Owner's manual (in PDF format, 1.4 MB)
Quick start guide (in PDF format, 285 kB)
GPS Chipset Type G V2.90 (Self-extracting ZIP-file, requires a PC and a connection cable, 634 kB)
List of changes made with GPS Chipset Type G Software Upgrades
Firmware Upgrade V4.00 (Self-extracting ZIP-file, requires a PC and a connection cable, 2.0 MB)
List of changes made with Firmware Upgrades

GPSMAP60C and GPSMAP60Cx:

Preloaded points of interest database. If MapSource data is loaded to this unit, the unit's preloaded points of interest database (POI) will be erased. Download and execute this file to restore the POI database. (Self-extracting ZIP-file, requires a PC and a connection cable, 3.75 MB)
xImage software V2.30 (create your own icons etc, 3.5 MB).

If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.

To table of contents

Order:

To order the GARMIN GPSMAP60Cx as well as options please:

Click on the price or the shopping basket symbol to add the item you wish to purchase to the shopping basket.
If the shopping basket does not work, please use this form.

Please read our terms and conditions.

To table of contents

Specifications and packaging of the products are subject to change without notice.

TRAMsoft GmbH
Laettenweg 19 / CH-8335 Hittnau / Switzerland
Telephone: +41 44 995 1570 / Contact
Last modification: 08/14/2010 (RA)

(This document was created with TRAMsoft XbCMS V1.3-00, does not require any browser specific features and is compliant with the W3C standard "HTML 4.01 Transitional")

Auto-Pack for GARMIN GPSMAP60Cx, including: Dashboard mounting kit with adhesive base Power cord for car cigarette lighter Software MapSource City Navigator Europe NT including unlock code	CHF 188	/	EUR 129	[Picture and details]
1.0 GB micro SD memory card including µSD to SD adapter (for GPSMAP60Cx only)	CHF 7	/	EUR 5	[Picture and details]
2.0 GB micro SD memory card including µSD to SD adapter (for GPSMAP60Cx only; one such micro SD memory card is included in the GPSMAP60Cx-Packs)	CHF 10	/	EUR 7	[Picture and details]
Serial connection cable for data exchange with a PC	CHF 53	/	EUR 36	[Picture and details]
USB cable for data exchange with PC (One such cable is included in the GPSMAP60C / GPSMAP60Cx)	CHF 19	/	EUR 13	[Picture and details]
Power cord for car cigarette lighter (One such cable is included in the Auto-Packs)	CHF 36	/	EUR 25	[Picture and details]
Combined cable for data exchange with PC and power cord for car cigarette lighter	CHF 68	/	EUR 47	[Picture and details]
USB cable for data exchange and power supply	CHF 143	/	EUR 98	[Picture and details]
External power supply 220 V	CHF 29	/	EUR 20	[Picture and details]
External power supply 220 V combined with serial cable for data exchange with PC	CHF 66	/	EUR 45	[Picture and details]
Soft case	CHF 29	/	EUR 20	[Picture and details]
Carabiner	CHF 29	/	EUR 20	[Picture and details]
Belt clip (One such belt clip is included in the GPSMAP60C / GPSMAP60Cx)	CHF 22	/	EUR 15	[Picture and details]
Retractable lanyard	CHF 39	/	EUR 27	[Picture and details]
Mounting kit for handlebar	CHF 27	/	EUR 19	[Picture and details]
Mounting adapter for larger handlebars (25..32 mm)	CHF 17	/	EUR 12	[Picture and details]
Mounting kit with suction cup for windshields in cars etc.	CHF 49	/	EUR 34	[Picture and details]
Mounting kit for dashboard (One such mounting kit is included in the Auto-Packs)	CHF 35	/	EUR 24	[Picture and details]
Adhesive base for dashboard mounting kit to use it in a second vehicle (One such adhesive base is included in the Auto-Packs)	CHF 22	/	EUR 15	[Picture and details]
Removable base for seemless switching between multiple vehicles	CHF 49	/	EUR 34	[Picture and details]
External GPS antenna	CHF 59	/	EUR 41	[Picture and details]
Extension cable for external GPS antenna	CHF 56	/	EUR 39	[Picture and details]
Adapter cable BNC to MCX for external GPS antenna	CHF 36	/	EUR 25	[Picture and details]
Adapter cable MCX to BNC for external GPS antenna	CHF 39	/	EUR 27	[Picture and details]
