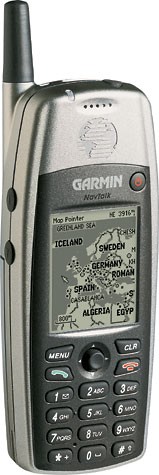

GARMIN NavTalk GSM



Mobile phone with integrated GPS receiver and Organizer (PDA). Gray scale display, supports auto-routing with voice guidance, integrated world and Europe/Africa map plus serial interface. Well suited as a hand held device or to be used in all kinds of vehicles.

The GARMIN NavTalk GSM is great combination of a mobile phone, a personal digital assistant (PDA) and a GPS receiver.

It provides automatic route calculating with visual and voice guidance. The 2 band mobile phone provides all the features you would expect from a mobile phone including short messages (SMS) and a WAP browser. The PDA supports contacts, a calendar with appointments, tasks and notes and allows synchronisation with email and groupware systems such as Microsoft Outlook or Lotus Notes. In addition, the NavTalk GSM provides an easy to use multi-lingual user interface, has an easy to read gray scale display, an extremely sensitive antenna, an integrated world map (overview) plus a base map of Europe, Africa and the near East. There is 16 MB of built-in memory to store even more detailed information, such as local roads, restaurants and points of interest. The NavTalk GSM provides navigation information outdoors, in a car, in a train or even in an airplane (see MapSource examples).


Contents: Features - Navigation - Overview - Main Pages - Price - Options - Downloads - Order


Features:




GARMIN NavTalk GSM

GSP receiver:

  • Integrated 12 channel GPS receiver with built-in antenna (external antenna available as an option)
  • Multi-lingual user interface in Danish, Dutch, English, French, German, Italian, Spanish and Swedish (requires Firmware V2.50 or higher)
  • Integrated world map (overview) with countries of all continents including major cities
  • Integrated base map of Europe, Africa and the near East with countries, waters, towns, highways, major roads and city maps. Navigational information are available for the following countries: country list
  • 16 MB of built-in memory to download additional, even more detailed maps with roads, crossings and addresses of restaurants, public buildings, points of interest etc. from a PC
  • Suited as a hand held device or to be used in any kind of vehicles. Mounting kit and power cable with speaker available as an option, does not require any installation.
  • Large, illuminated, easy to read LCD display: Dimension: 32x38 mm, resolution: 132x160 pixels, 4 gray scales
  • Powered by a rechargable battery, operation up to 300 h (standby), rsp. 8 h estimated talk time (operation of the GPS receiver will reduce these times), or by a 12 V extrenal power source (charger included, power cord for car lighter available as an option)
  • Short time to first fix (TTFF¹: approx. 15 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 45 seconds after a cold start, meaning there are no valid coordinates of the satellites available)
  • Supports the following protocols for data exchange with PC: NMEA 0183 with 4800 Baud, GARMIN, GARMIN DGPS, NMEA 0183 V2.30, Text out, RTCM IN, RTCM/NMEA and RTCM/TEXT
  • DGPS (Differential GPS) ready (GARMIN differential receiver available as an option)
  • Memory gauge
  • Firmware stored in Flash-Memory, can be updated by the user
  • Operating temperatures -15 .. 70°C (5° .. 158°F)
  • Serial interface RS-232 (connection cable included)
  • Dimensions: 133x51x24 mm (5.2x2.0x0.94 inches)
  • Weight: 170 g (0.4 ounces, including the battery)

Telephon:

  • GSM Dual-Band 900/1800 MHz
  • Integrated modem, speed up to 14'400 Baud, connection via cabel (data cable included, no infrared interface)
  • SMS, current position can be included in message text if the GPS receiver is turned on. If you receive a message from another NavTalk GSM which includes position information, that position can be stored as a waypoint and displayed on the map of your own NavTalk GSM.
  • Emergency call: Send a message with the current time, the current position and a preset text to a predefined phone number by simply pressing and holding one bottom. The GPS receiver needs to be turned on in order to provide the current position.
  • WAP browser
  • Speed dial by pressing and holding a single buttom (9 numbers)

Organizer (PDA):

  • Contacts with 12 data fields, including first and last name, addresses, phone numbers, email addresses, waypoint, notes etc.
  • Appointments with alarms and re-occurence patterns
  • Tasks
  • Notes
  • Synchronisation between a NavTalk GSM and the most common email- and groupware programs (ACT!, Lotus Notes, Microsoft Outlook, Palm Desktop) via Intellisync (CDrom included). Requires a PC with Windows 95, 98, NT, 2000 or XP and a serial interface
  • Games
  • Calculator (standard und scientific mode)

¹) TTFF: Time To First Fix, time until the first information about the local position is acquired.

To table of contents


Information for navigation:

To table of contents

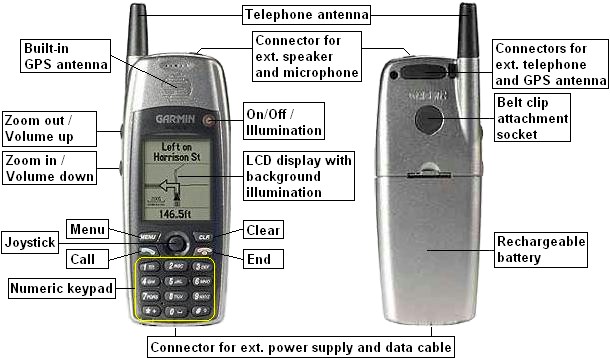

GARMIN NavTalk GSM overview:

GARMIN NavTalk GSM overview

Keys:

To table of contents


Main pages of the GARMIN NavTalk GSM:

Menu pages:

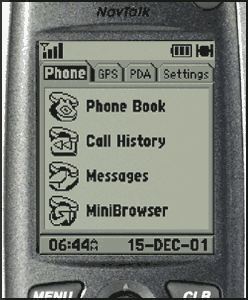

Phone GPS PDA

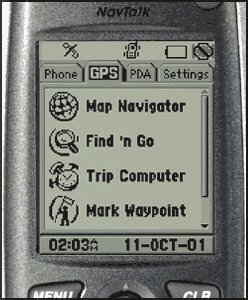

GARMIN NavTalk GSM Phone GARMIN NavTalk GSM Navigation GARMIN NavTalk GSM PDA
  • Phone book (contacts)
  • List of received, missed and dialed numbers
  • Short messages (SMS)
  • WAP browser
  • Maps
  • Find waypoints, addresses, points of interest (hotels, restaurants, gas stations etc.)
  • Current and maximum speed, travelled distance etc.
  • Satellite info including accuracy of the current position, elevation etc.
  • Calendar with appointments
  • Tasks
  • Notes
  • Games
  • Calculator

GPS pages:

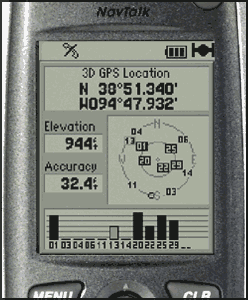

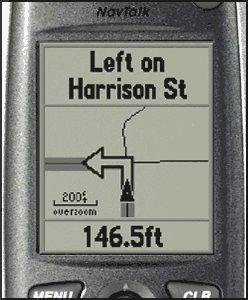

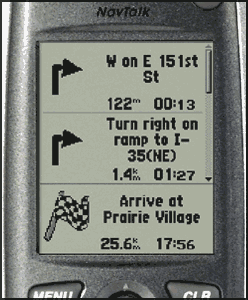

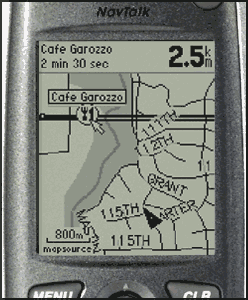

Satellite Info Map Route Turn
GARMIN NavTalk GSM Satellite Info GARMIN NavTalk GSM Map GARMIN NavTalk GSM Route GARMIN NavTalk GSM Turn
  • Status
  • Current position (coordinates)
  • Elevation
  • Accuracy of the current position
  • Current position of the satellites in the sky
  • Signal strength for each satellite
  • Destination
  • Estimated remaining time until arrival at destination
  • Distance to destination
  • Map with current position
  • List of turns with name of the crossroad, distance and estimated remaining time to the turn (route)
  • Name of destination, distance to and estimated remaining time until arrival at destination
  • Name of the crossroad
  • Detailed map (auto zoom)
  • Distance to turn

PDA pages:

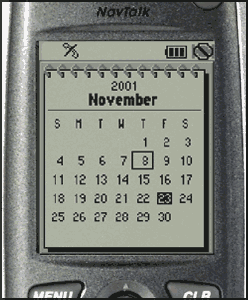

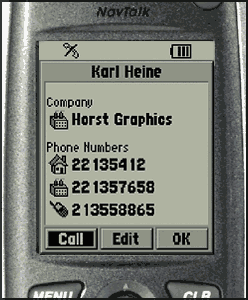

Calendar Phone Book
GARMIN NavTalk GSM Calendar GARMIN NavTalk GSM Phone Book
  • Calendar with appointments
  • Company
  • Phone numbers
  • Other data fields as required

To table of contents


Price:

To table of contents


Options:

Serial connection cable for data exchange with a PC Add item to shopping basket CHF 44 / EUR 38 [Picture and details]
External GPS antenna Add item to shopping basket CHF 44 / EUR 38 [Picture and details]
Extension cable for external GPS antenna Add item to shopping basket CHF 49 / EUR 43 [Picture and details]
Adapter cable BNC to MCX for external GPS antenna Add item to shopping basket CHF 29 / EUR 25 [Picture and details]
Adapter cable MCX to BNC for external GPS antenna Add item to shopping basket CHF 39 / EUR 34 [Picture and details]
Adhesive base for dashboard mounting kit to use it in a second vehicle Add item to shopping basket CHF 15 / EUR 13 [Picture and details]
Case Add item to shopping basket CHF 22 / EUR 19 [Picture and details]
Belt clip Add item to shopping basket CHF 22 / EUR 19 [Picture and details]

All options for the GARMIN NavTalk GSM in detail.

To table of contents


Downloads:

Here we provide additional documentation, software updates and language files for the GARMIN NavTalk GSM:

Get Acrobat Reader If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.

To table of contents


Order:

To order options for GARMIN NavTalk GSM please:

  1. Click on the price or the shopping basket symbol Show shopping basket to add the item you wish to purchase to the shopping basket.
  2. If the shopping basket does not work, please use this form.

Please read our terms and conditions.

To table of contents


Specifications and packaging of the products are subject to change without notice.
