GARMIN Nüvi 1490T

GPS receiver with fast auto-routing, voice guidance including announcement of street names, lane assistant, traffic news receiver, color display with touchscreen, worldwide base map, pre-loaded detailed maps of all of Europe plus Blue Tooth and USB interface. Well suited as navigation system in vehicles but may also be used as hand held device.

The model GARMIN Nüvi 1490T provides fast automatic route calculation - including multiple intermediate destinations if required - plus visual and voice guidance. The lane assistant indicates the correct path in great detail if there are multiple lanes. There is also a TMC receiver included to incorporate traffic news. The Nüvi 1490T is easy to use, has a large, easy to read color display with touch screen, an extremely sensitive antenna and an integrated worldwide base map. It is very well suited as a navigation system in cars, but you may also use it as a hand held device.
It has 3.62 GB built-in memory to store detailed maps with even more information, such as local roads, hotels, restaurants, public buildings and points of interest. This model comes with pre-loaded maps of all of Europe which occupy approximately 2.81 GB of memory including various language files. The remaining 0.81 GB memory is available to store additional detailed maps, waypoint files or pictures. It also has a speech computer to announce the names of the streets. The Nüvi 1490T is equipped with a BlueTooth interface to communicate with mobile phones which have the required communication capabilities in order to call car rental offices, hotels, restaurants etc. whose phone numbers are stored on the GPS with a single touch on the screen. It can also act as a hands-free extension set to the phones. In addition, the GPS has a slot for an optional microSD memory module to store additional maps or data and an USB connector to exchange data with a computer. The device is powered by a rechargeable battery. The Nüvi 1490T provides navigation information outdoors, in a car, in a train or even in an airplane (see MapSource examples).


Contents: Features - Navigation - Overview - Main Pages - Price - Options - Maps - Downloads - Order


Features:

GARMIN Nuvi 1490T

¹) TTFF: Time To First Fix, time until the first information about the local position is acquired.

To table of contents


Information for navigation:

To table of contents

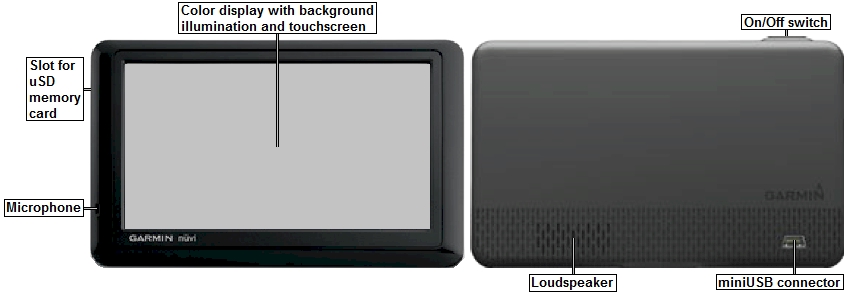

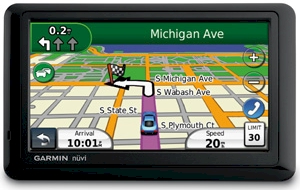

Overview of the GARMIN Nüvi 1490T:

Overview of the GARMIN Nuvi 1490T

To table of contents


Main pages of the GARMIN Nüvi 1490T:

The images below show the display of the Nüvi 1490T in true resolution (480x272 pixels). This does not necessarily mean the display is shown it its true size (111x63 mm), the actual size of these images depend on the properties of your display. Many of the pages are configurable, the pictures are just examples.

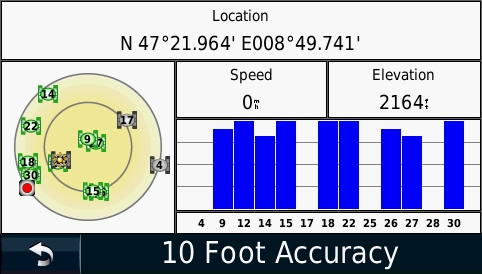

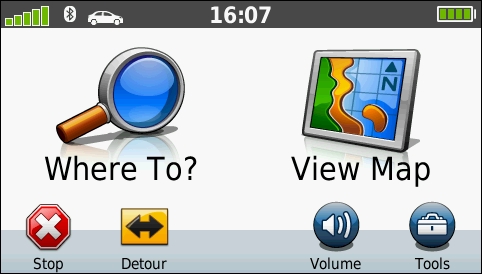

Main Menu Satellites
GARMIN Nuvi 1490T - Main Menu GARMIN Nuvi 1490T - Satellites
  • Status bar with GPS signal strength, Blue Tooth status, routing mode (car, bike, pedestrian), current time and battery charge level. Touch an icon to switch to the corresponding page (keep your finger on the satellite icon for a few seconds).
  • Search destination
  • View map
  • Stop navigation (only shown if there is an active route)
  • Compute a detour (only shown if there is an active route)
  • Adjust volume
  • Tools (system settings, information about current position, manage data, image viewer, world clock, calculator etc., see Tools 1 and 2 below)
  • Coordinates of the current position
  • Position of the satellites, the sun and the moon
  • Current speed
  • Current elevation above sea level
  • Strength of the satellites' signals
  • Back to main menu
  • Accuracy of the current position indication

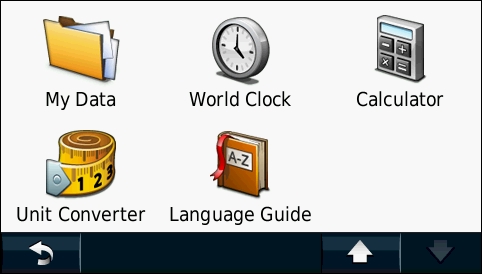

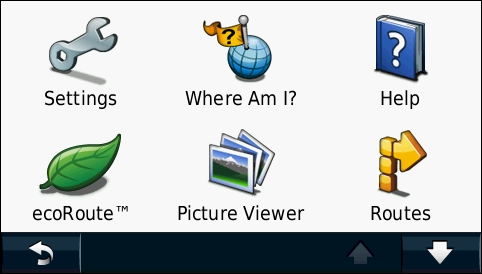

Tools (1 of 2) Tools (2 of 2)
GARMIN Nuvi 1490T - Tools 1 of 2 GARMIN Nuvi 1490T - Tools 2 of 2
  • Settings (system, navigation, display, time, languages (text and speech), map, safety, Blue Tooth and alarms)
  • Current position (coordinates and elevation, nearest address, nearest intersection, find nearest hospitals, police stations, gas stations and road side assistances, save current position as waypoint)
  • Help about using your Nüvi 1490T
  • ecoRoute: Settings to compute the most economical route and to gather statistical information
  • Picture viewer, displays pictures and provides various options, such as zooming, slide show etc.
  • Route management

  • Back to main menu
  • To the next tools page
  • Manage your own data (set "Home", erase tracks, manage your own waypoints, routes and ciao friends)
  • World clock showing the current time at different locations plus map showing day and night time
  • Calculator with four basic operations
  • Unit converter to convert distances, areas, volumes, speed, weight and temperatures in metric and American units.
  • Language guide

  • Back to main menu
  • To the previous tools page

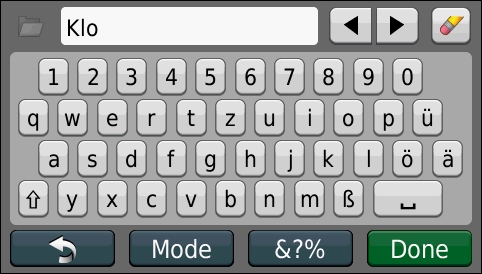

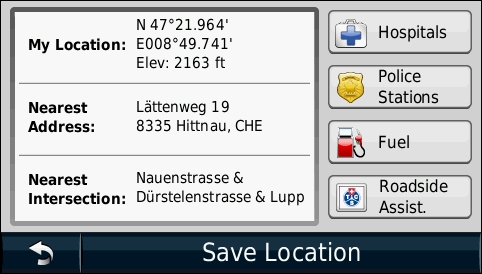

Current Position Text Entry
GARMIN Nuvi 1490T - Current position GARMIN Nuvi 1490T - Text Entry
  • Current position (coordinates and elevation)
  • Nearest address
  • Nearest intersection
  • Find nearest hospitals
  • Find nearest police stations
  • Find nearest gas stations
  • Find nearest road side assistances
  • Back to previous page
  • Save current position as waypoint
  • Field for text entry
  • Move cursor left
  • Move cursor right
  • Delete last character
  • Keyboard
  • Back to previous page
  • Keyboard mode (language)
  • Switch to special characters
  • Finish text entry

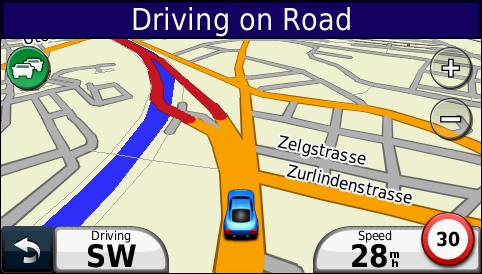

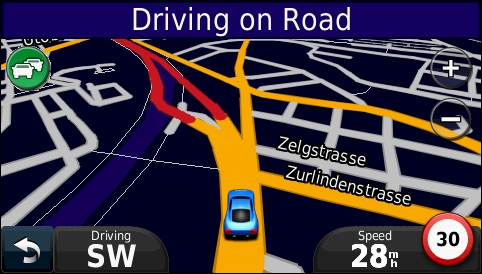

Map (day mode) Map (night mode)
GARMIN Nuvi 1490T - Map in day mode GARMIN Nuvi 1490T - Map in night mode
  • GPS status
  • Map in 3D view in day mode with current position (blue car) and indication for traffic messages (green icon)
  • Back to main menu
  • Current time (touch to select: estimated arrival time*, distance to destination*, estimated travel time to destination*, current heading, current elevation above sea level, current time. Values with * are only available if there is an active route.)
  • Current speed and speed limit (touch to access trip computer)
  • GPS status
  • Map in 3D view in night mode with current position (blue car) and indication for traffic messages (green icon)
  • Back to main menu
  • Current time (touch to select: estimated arrival time*, distance to destination*, estimated travel time to destination*, current heading, current elevation above sea level, current time. Values with * are only available if there is an active route.)
  • Current speed and speed limit (touch to access trip computer)

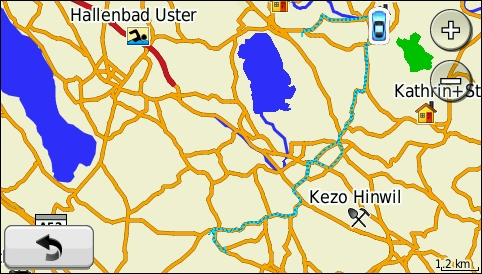

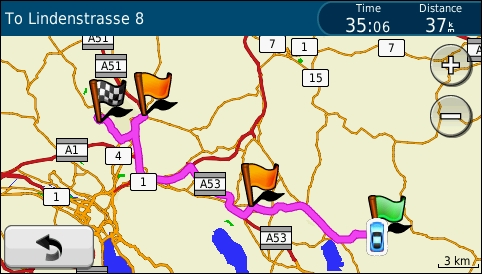

Route Track
GARMIN Nuvi 1490T - Route GARMIN Nuvi 1490T - Track
  • Status bar with name of final destination, estimated travel time and distance to destination
  • Planned route (pink line) with current position (blue car), start (green flag), vias (orange flags) and final destination (black and white flag) plus scale (bottom right corner)
  • To the previous page
  • Map with current position (blue car) and travelled path (track, blue line), show or hide the track on the map through map settings, scale (right bottom)
  • Change scale ("-" and "+")
  • Back to previous page

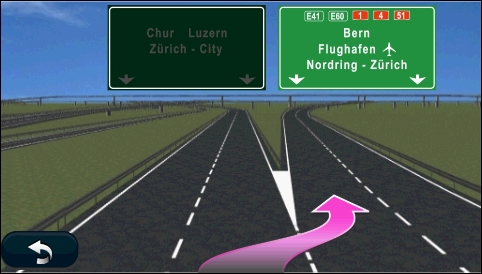

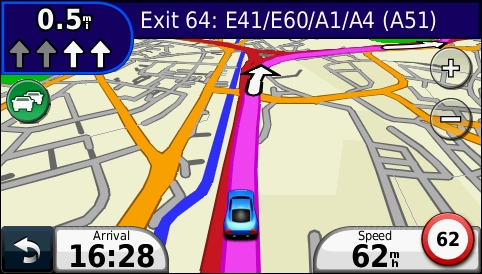

Direction Lane Assistant
GARMIN Nuvi 1490T - Direction GARMIN Nuvi 1490T - Lane assistant
  • Direction with distance to next turn and type of turn
  • Name of the road onto which you will turn
  • Map with current position (blue car), planned route (pink line), next turn (white arrow), indication for traffic messages (green icon)
  • Back to main menu
  • Estimated arrival time (touch to select: estimated arrival time*, distance to destination*, estimated travel time to destination*, current heading, current elevation above sea level, current time. Values with * are only available if there is an active route.)
  • Current speed and speed limit (touch to access trip computer)
  • Detailed view of the lanes at the next turn
  • Arrow exactly indicating which lane to take
  • Back to previous page

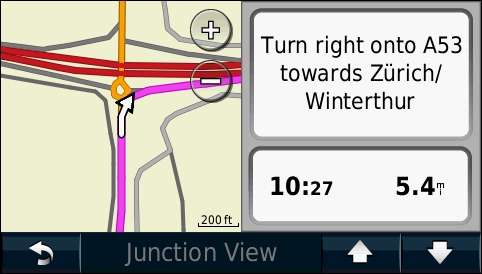

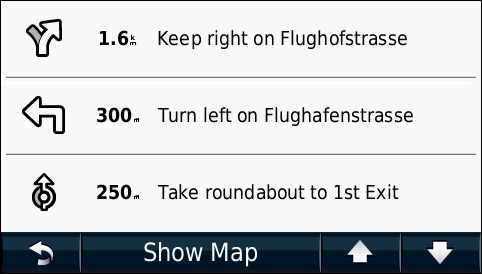

Directions Autozoom
GARMIN Nuvi 1490T - Directions GARMIN Nuvi 1490T - Autozoom
  • Type of turn
  • Distance to next turn
  • Direction
  • Back to previous page
  • Show route on map
  • To the previous directions
  • To the next directions
  • Highly zoomed map with detailed view of next turn (will be display automatically when approaching a turn)
  • Change scale ("-" and "+")
  • Direction
  • Estimated time to next turn
  • Distance to next turn
  • Back to previous page
  • Lane assistant (if available for that particular turn)
  • To previous turn
  • To next turn

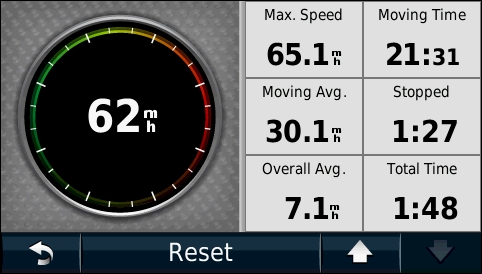

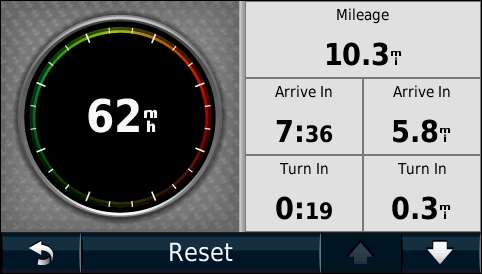

Trip Computer (1 of 2) Trip Computer (2 of 2)
GARMIN Nuvi 1490T - Trip Computer (1 of 2) GARMIN Nuvi 1490T - Trip Computer (2 of 2)
  • Current speed
  • Travelled distance (odometer)
  • Estimated travel time to destination
  • Distance to final destination
  • Estimated travel time to next turn
  • Distance to next turn
  • Back to previous page
  • Reset trip data (maximum speed, travelled distance, average speed, time)
  • To next data fields
  • Current speed
  • Maximum speed
  • Total moving time
  • Average speed without stopped time
  • Total stopped time
  • Average speed including stopped time
  • Total time since last reset
  • Back to previous page
  • Reset trip data (maximum speed, travelled distance, average speed, time)
  • To previous data fields

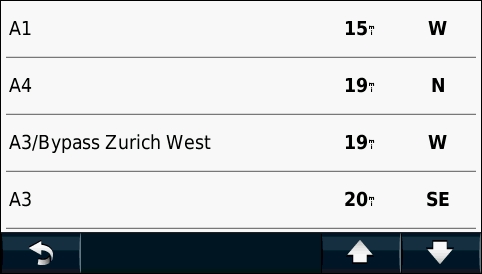

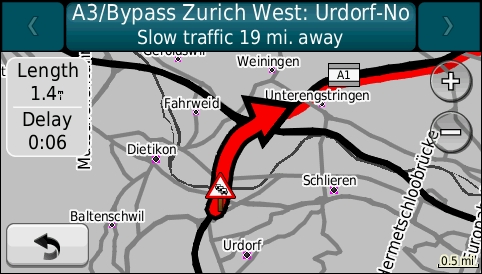

Traffic Messages Traffic Message
GARMIN Nuvi 1490T - Traffic Messages GARMIN Nuvi 1490T - Traffic message on map
  • Name of the affected road with distance and direction from current location to traffic incident (touch to display traffic incident on the map)
  • Back to previous page
  • Previous traffic incidents
  • Next traffic incidents
  • To previous traffic incident
  • Name of the affected road with type of traffic incident and distance from current position to incident
  • To next traffic incident
  • Length of the traffic incident
  • Estimated additional travel time due to traffic incident
  • Map showing location of traffic incident. Color code (green = traffic still flowing, yellow = traffic partially congested, red = traffic is heavily congested or stopped)
  • Change scale ("-" and "+")
  • Back to previous page

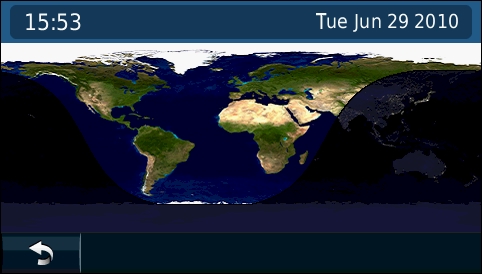

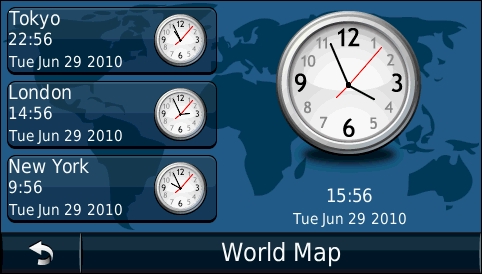

World Clock World Map with Day/Night Zone
GARMIN Nuvi 1490T - World clock GARMIN Nuvi 1490T - World map with day and night zone
  • Cities with time and day of week (choose cities from list)
  • Time and date at current position
  • Back to previous page
  • World map with daylight and night
  • Time and date at current position
  • World map with day and night zone
  • Back to previous page

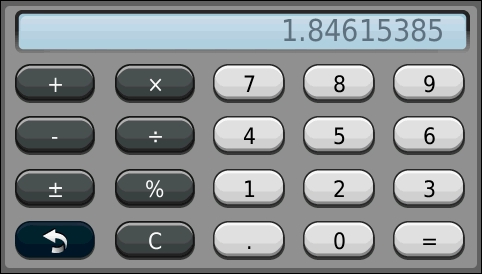

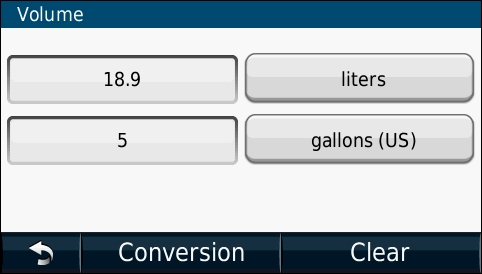

Unit Converter Calculator
GARMIN Nuvi 1490T - Unit Converter GARMIN Nuvi 1490T - Calculator
  • Type of convertion
  • Input (value and unit)
  • Result (value and unit)
  • Back to previous page
  • Select convertion (distance, area, volume, speed, weight, temperature, currency)
  • Clear input
  • Result of last calculation
  • Operation keys
  • Number keys
  • Back to previous page

To table of contents


Price:

To table of contents


Options:

GARMIN EcoRoute HD Module Add item to shopping basket CHF 128 / EUR 112 [Picture and details]
Power cord for car cigarette lighter Add item to shopping basket CHF 29 / EUR 25 [Picture and details]
GARMIN GTM35 TMC traffic receiver with built-in FM antenna combined with power cord for car cigarette lighter
(One such traffic receiver combined with power cord comes with the Nüvi 1490T)
Add item to shopping basket CHF 98 / EUR 86 [Picture and details]
Power supply without USB cable Add item to shopping basket CHF 22 / EUR 19 [Picture and details]
Power supply with USB cable Add item to shopping basket CHF 24 / EUR 21 [Picture and details]
USB cable for data exchange and power supply
(One such cable comes with the Nüvi 1490T)
Add item to shopping basket CHF 15 / EUR 13 [Picture and details]
Mounting kit with suction cup including adhesive dashboard disk
(One such mounting kit comes with the Nüvi 1490T)
Add item to shopping basket CHF 39 / EUR 34 [Picture and details]
Mounting kit with suction cup including adhesive disk to be fixed on the dashboard
(Does not include mounting bracket)
Add item to shopping basket CHF 18 / EUR 16 [Picture and details]
Adjustable mounting kit with suction cup including adhesive disk to be fixed on the dashboard (does not include unit mount) Add item to shopping basket CHF 21 / EUR 18 [Picture and details]
Portable friction mount (new design; does not include unit mount) Add item to shopping basket CHF 45 / EUR 39 [Picture and details]
4.0 GB micro SDHC memory card including µSD to SD adapter Add item to shopping basket CHF 9 / EUR 8 [Picture and details]
8.0 GB micro SDHC memory card including µSD to SD adapter Add item to shopping basket CHF 16 / EUR 14 [Picture and details]
16.0 GB micro SDHC memory card including µSD to SD adapter Add item to shopping basket CHF 19 / EUR 17 [Picture and details]

All options for the GARMIN Nüvi 1490T in detail, find maps here.
