GARMIN Nüvi 5000

Our shop and our offices remain closed until August 20th, 2017.
During this time, we neither process orders, nor do we answer phone calls. For warranty cases or repairs, please send an email to service@tramsoft.ch or use our contact form.

We shall be happy to serve you again beginning Monday August 21st, 2017.

GPS receiver with fast auto-routing, voice guidance including announcement of street names, big color display with touchscreen, worldwide base map, pre-loaded detailed maps of all of Europe and USB interface. Well suited as navigation system in all kinds of vehicles, especially in mini vans, trucks and motorhomes.

The model GARMIN Nüvi 5000 provides fast automatic route calculation - including multiple intermediate destinations if required - plus visual and voice guidance. It is easy to use, has a very large, easy to read color display with touch screen, an extremely sensitive antenna and an integrated worldwide base map. It is very well suited as a navigation system in all kinds of vehicles and requires an external power supply.
It has 3.48 GB built-in memory to store detailed maps with even more information, such as local roads, hotels, restaurants, public buildings and points of interest. This model comes with pre-loaded maps of all of Europe which occupy approximately 1.82 GB of memory including various language files. The remaining 1.65 GB memory is available to store additional detailed maps, MP3 and waypoint files or pictures.
This model also has a speech computer to announce the names of the roads, to speak words and phrases of the language guides and to read audible books. In addition, the GPS has a slot for an optional SD memory module to store additional maps or data and an USB connector to exchange data with a computer. It supports a TMC receiver to incorporate traffic news (TMC receiver available as an option). The Nüvi 5000 provides navigation information outdoors, in a car, in a train or even in an airplane (see MapSource examples).


Contents: Features - Navigation - Overview - Main Pages - Price - Options - Maps - Downloads - Order


Features:

GARMIN Nuvi 5000

¹) TTFF: Time To First Fix, time until the first information about the local position is acquired.

To table of contents


Information for navigation:

To table of contents

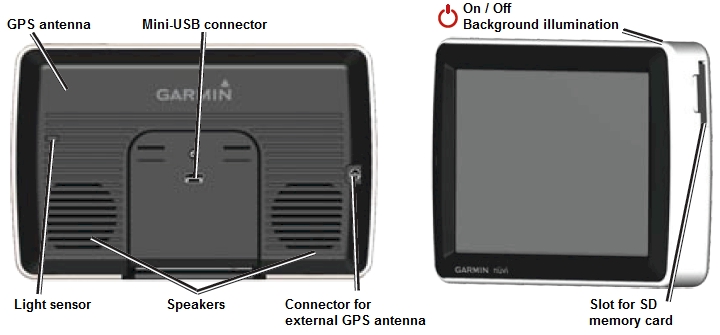

Overview of the GARMIN Nüvi 5000:

Overview GARMIN Nuvi 5000

To table of contents


Main pages of the GARMIN Nüvi 5000:

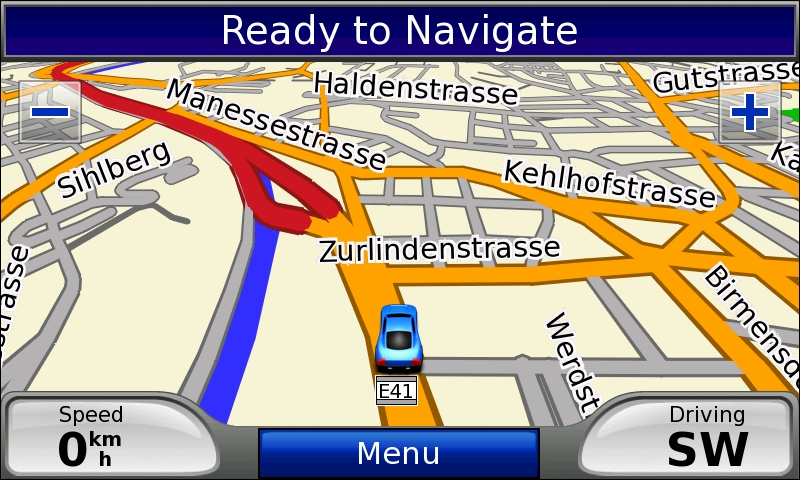

Display of the Nuvi 5000 in true resolution (800x480 pixels)

The image above shows the display of the Nüvi 5000 in true resolution (800x480 pixels).
This does not necessarily mean the display is shown it its true size (114x69 mm),
the actual size of this image depends on the properties of your display.
In order to improve the appearance of this document, the images below have been reduced to 400x240 pixels.

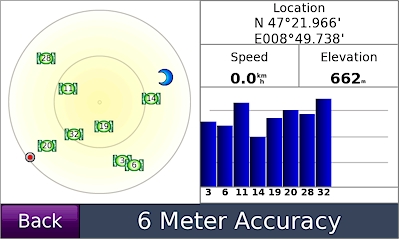

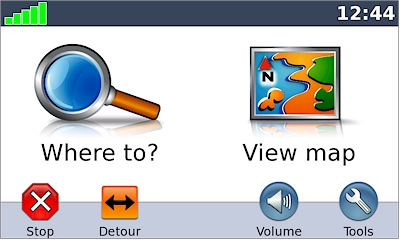

Main Menu Satellites
GARMIN Nuvi 5000 - Main Menu GARMIN Nuvi 5000 - Satellites
  • Status bar with GPS signal strength and current time
  • Search destination
  • View map
  • Stop navigation (only shown if there is an active route)
  • Compute a detour (only shown if there is an active route)
  • Adjust volume
  • Tools (system settings, information about current position, manage data, image viewer, world clock, calculator etc., see Tools 1..2 below)
  • Position of the satellites, the sun and the moon
  • Coordinates of the current position
  • Current speed
  • Current elevation above sea level
  • Strength of the satellites' signals
  • Back to previous page
  • Accuracy of the current position indication

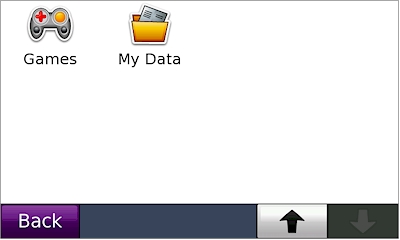

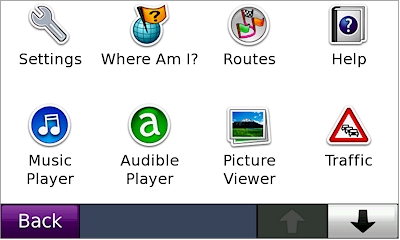

Tools (1 of 2) Tools (2 of 2)
GARMIN Nuvi 5000 - Tools 1 of 2 GARMIN Nuvi 5000 - Tools 2 of 2
  • Settings (system, navigation, display, time, languages (text and speech), map, safety and alarms)
  • Current position (coordinates and elevation, nearest address, nearest intersection, find nearest hospitals, police stations and gas stations, save current position as waypoint)
  • Route management
  • Help about using your Nüvi 5000
  • MP3 player, listen to your favorite music while travelling
  • Audible book reader, reads audible books; download audible books from the Internet
  • Picture viewer, displays pictures and provides various options, such as zooming, rotation etc.
  • Traffic messages
  • Back to previous page
  • To the next tools page
  • Various games
  • Manage your own data ("Home", erase track, manage your own waypoints)
  • Back to previous page
  • To the previous tools page

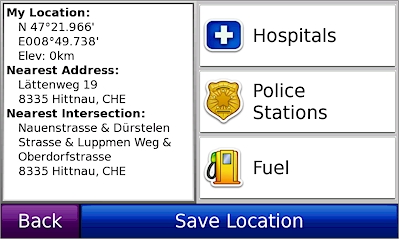

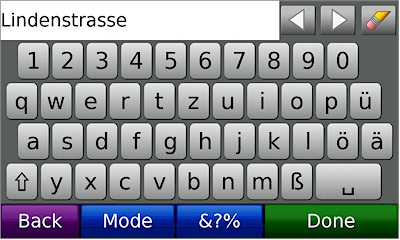

Current Position Text Entry
GARMIN Nuvi 5000 - Current Position GARMIN Nuvi 5000 - Text Entry
  • Current position (coordinates and elevation)
  • Nearest address
  • Nearest intersection
  • Find nearest hospitals
  • Find nearest police stations
  • Find nearest gas stations
  • Back to previous page
  • Save current position as waypoint
  • Field for text entry
  • Move cursor left
  • Move cursor right
  • Delete last character
  • Keyboard
  • Back to previous page
  • Keyboard mode (language)
  • Switch to special characters
  • Finish text entry

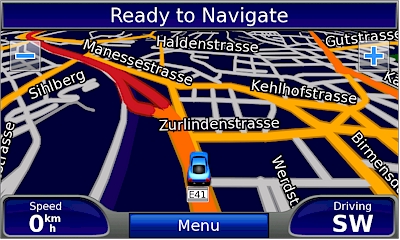

Map (day mode) Map (night mode)
GARMIN Nuvi 5000 - Map in day mode GARMIN Nuvi 5000 - Map in night mode
  • GPS status
  • Map in 3D view in day mode with current position (blue car)
  • Current speed
  • To main menu
  • Current heading
  • GPS status
  • Map in 3D view in night mode with current position (blue car)
  • Current speed
  • To main menu
  • Current heading

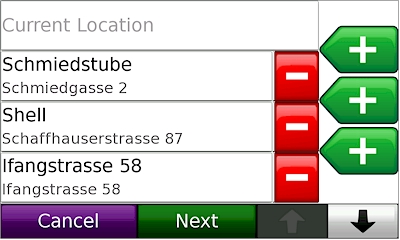

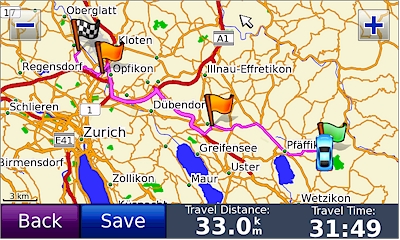

Route Vias
GARMIN Nuvi 5000 - Route GARMIN Nuvi 5000 - Vias
  • Planned route (pink line) with current position (blue car), start (green flag), vias (orange flags) and final destination (black and white flag)
  • Back to previous page
  • Save current route
  • Length of the planned route
  • Estimated travel time for the complete route
  • Start of the route
  • Vias, also known as intermediate destinations (you may move or delete each via point)
  • Insert new via point
  • Back to previous page
  • Re-calculate the route, the GPS may optimize the order of the vias to find the shortest route
  • To the next vias

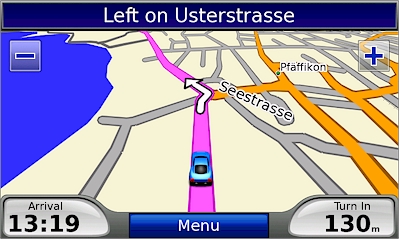

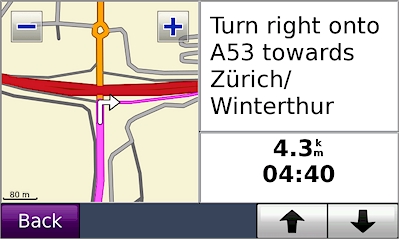

Direction Autozoom
GARMIN Nuvi 5000 - Direction GARMIN Nuvi 5000 - Autozoom
  • Name of the road onto which you will turn
  • Map with current position (blue car), planned route (pink line) and next turn (white arrow)
  • Estimated arrival time at final destination
  • To main menu
  • Distance to next turn
  • Highly zoomed map with detailed view of next turn (will be display automatically when approaching a turn)
  • Change scale ("-" and "+")
  • Direction
  • Distance to next turn
  • Estimated time to next turn
  • Back to previous page
  • To previous turn
  • To next turn

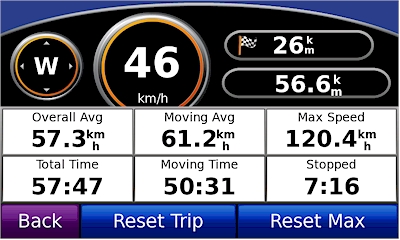

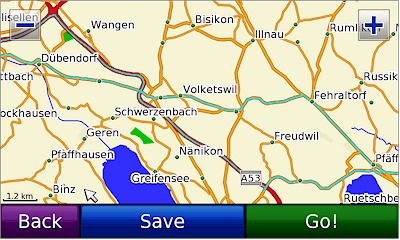

Trip Computer Track
GARMIN Nuvi 5000 - Trip Computer GARMIN Nuvi 5000 - Track
  • Current moving direction
  • Current speed
  • Distance to final destination
  • Travelled distance (odometer)
  • Average speed including stopped time
  • Average speed without stopped time
  • Maximum speed
  • Total time since last reset
  • Total moving time
  • Total stopped time
  • Back to previous page
  • Reset trip data (odometer, average speed, time)
  • Reset maximum speed
  • Map with travelled path (track, blue line), you may show or hide the track on the map
  • Change scale ("-" and "+")
  • Back to previous page
  • Save position (head of arrow) as waypoint
  • Navigate to position (head of arrow)

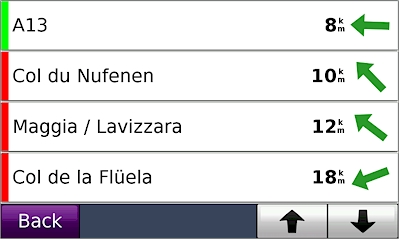

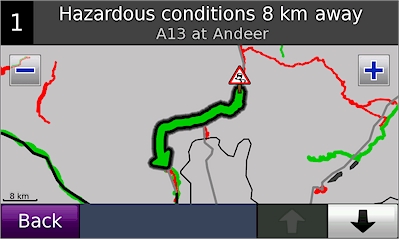

Traffic Messages Traffic Message
GARMIN Nuvi 5000 - Traffic Messages GARMIN Nuvi 5000 - Traffic incident on map
  • Color code (green = traffic still flowing, yellow = traffic partially congested, red = traffic is heavily congested or stopped)
  • Name of affected road (touch to display traffic incident on the map)
  • Distance from current location to traffic incident
  • Direction from current location to traffic incident
  • Back to previous page
  • Previous traffic incidents
  • Next traffic incidents
  • Type of traffic incident and distance from current position to incident
  • Name of affected road
  • Color code (green = traffic still flowing, yellow = traffic partially congested, red = traffic is heavily congested or stopped)
  • Change scale ("-" and "+")
  • Back to previous page
  • Previous traffic incident
  • Next traffic incident

To table of contents


Price:

To table of contents


Options:

External microphone for hands free set for mobile phone Add item to shopping basket CHF 17 / EUR 15 [Picture and details]
Mounting kit with suction cup including adhesive disk to be fixed on the dashboard
(Does not include mounting bracket)
Add item to shopping basket CHF 18 / EUR 16 [Picture and details]
Adjustable mounting kit with suction cup including adhesive disk to be fixed on the dashboard (does not include unit mount) Add item to shopping basket CHF 21 / EUR 18 [Picture and details]
Portable friction mount (new design; does not include unit mount) Add item to shopping basket CHF 45 / EUR 39 [Picture and details]
Power cord for car cigarette lighter
(A power cord combined with TMC traffic receiver with built-in FM antenna comes with the Nüvi 5000)
Add item to shopping basket CHF 24 / EUR 21 [Picture and details]
Power supply without USB cable Add item to shopping basket CHF 22 / EUR 19 [Picture and details]
USB cable for data exchange and power supply
(One such cable comes with the Nüvi 5000)
Add item to shopping basket CHF 15 / EUR 13 [Picture and details]
External GPS antenna Add item to shopping basket CHF 44 / EUR 38 [Picture and details]
Extension cable for external GPS antenna Add item to shopping basket CHF 45 / EUR 39 [Picture and details]
Adapter cable BNC to MCX for external GPS antenna Add item to shopping basket CHF 29 / EUR 25 [Picture and details]
Adapter cable MCX to BNC for external GPS antenna Add item to shopping basket CHF 39 / EUR 34 [Picture and details]
4.0 GB micro SDHC memory card including µSD to SD adapter Add item to shopping basket CHF 9 / EUR 8 [Picture and details]
8.0 GB micro SDHC memory card including µSD to SD adapter Add item to shopping basket CHF 16 / EUR 14 [Picture and details]
16.0 GB micro SDHC memory card including µSD to SD adapter Add item to shopping basket CHF 19 / EUR 17 [Picture and details]
Travel guide Marco Polo Northwest Europe (Belgium, Great Britain, Ireland, Luxembourg, Netherlands) Add item to shopping basket CHF 30 / EUR 26 [Picture and details]
Travel guide Fodor's North America (Canada and USA) Artikel in Warenkorb legen CHF 45 / EUR 39 [Picture and details]

All options for the GARMIN Nüvi 5000 in detail, find maps here.

To table of contents


Downloads:

Quick start manuals, owner's manuals and firmware upgrade for GARMIN Nüvi 5000:

Quick start manuals:


Owner's manuals:


Firmware Upgrade:
Get Acrobat Reader If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.

To table of contents


Order:

To order options for the GARMIN Nüvi 5000 please:

  1. Click on the price or the shopping basket symbol Show shopping basket to add the item you wish to purchase to the shopping basket.
  2. If the shopping basket does not work, please use this form.

Please read our terms and conditions.

To table of contents
