GARMIN Nüvi 865T

GPS receiver with fast auto-routing, voice-activated navigation, voice guidance including announcement of street names, lane assistant, traffic news receiver, color display with touchscreen, worldwide base map, pre-loaded detailed maps of all of Europe plus Blue Tooth and USB interface. Well suited as navigation system in vehicles but may also be used as hand held device.

The model GARMIN Nüvi 865T provides fast automatic route calculation - including multiple intermediate destinations if required - plus visual and voice guidance. The voice-activated navigation feature allows you to talk to your Nüvi 865T while you keep your hands on the wheel and your eyes on the road. The lane assistant indicates the correct path in great detail if there are multiple lanes. There is also a TMC receiver included to incorporate traffic news. The Nüvi 865T is easy to use, has a large, easy to read color display with touch screen, an extremely sensitive antenna and an integrated worldwide base map. It is very well suited as a navigation system in cars, but you may also use it as a hand held device.
It has 3.48 GB built-in memory to store detailed maps with even more information, such as local roads, hotels, restaurants, public buildings and points of interest. This model comes with pre-loaded maps of all of Europe which occupy approximately 2.96 GB of memory including various language files. The remaining 535 MB memory is available to store additional detailed maps, MP3 and waypoint files or pictures.
This model also has a speech computer to announce the names of the roads, to speak words and phrases of the language guides and to read audible books. It plays sound either through the built-in loudspeakers or through your car sound equipment using the integrated mini FM transmitter. The Nüvi 865T is equipped with a BlueTooth interface to communicate with mobile phones which have the required communication capabilities in order to call car rental offices, hotels, restaurants etc. whose phone numbers are stored on the GPS with a single touch on the screen. It can also act as a hands-free extension set to the phones. In addition, the GPS has a slot for an optional microSD memory module to store additional maps or data and an USB connector to exchange data with a computer. The device is powered by a rechargeable battery. The Nüvi 865T provides navigation information outdoors, in a car, in a train or even in an airplane (see MapSource examples).


Contents: Features - Navigation - Overview - Main Pages - Price - Options - Maps - Downloads - Order


Features:

GARMIN Nuvi 865T

¹) TTFF: Time To First Fix, time until the first information about the local position is acquired.

To table of contents


Information for navigation:

Voice-activated navigation:

Example of a dialog between a driver and the Nüvi 865T:

Driver: "Where to"
Nüvi 865T: "Select the search category"
Driver: "Points of Interest"
Nüvi 865T: "Search by category or place name ?"
Driver: "Category"
Nüvi 865T: "Select the search category"
Driver: "Fuel"
Nüvi 865T: "Searching for fuel ..."
  The GPS shows the four closest gas stations
Nüvi 865T: "Select the line number"
Driver: "Page down"
  The GPS shows the next four gas stations on the list
Driver: "Three"
  The GPS shows information about the selected gas station
Nüvi 865T: "Would you like to begin navigation ?"
Driver: "Yes"
  The GPS shows the map and the first driving direction

Note: You may also speak names of cities and roads and house numbers; Names of points of interest (hotels, restaurants etc.) must be typed in using the keyboard.

To table of contents

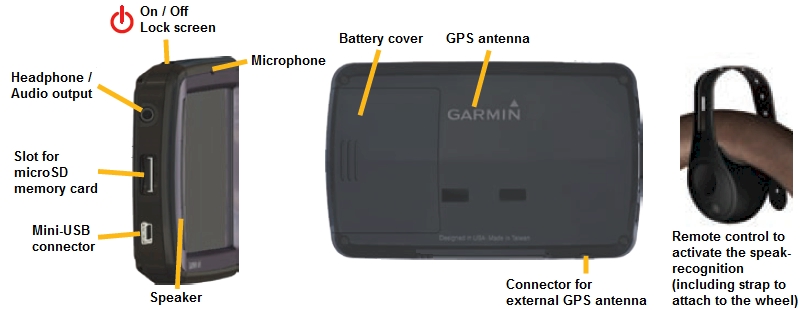

Overview of the GARMIN Nüvi 865T:

Overview GARMIN Nuvi 865T including remote control for speak recognition

To table of contents


Main pages of the GARMIN Nüvi 865T:

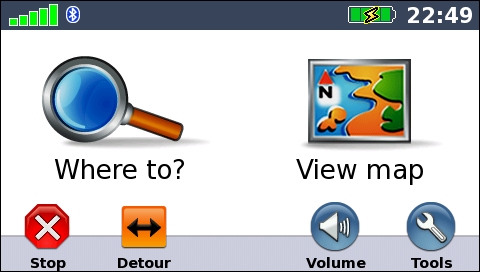

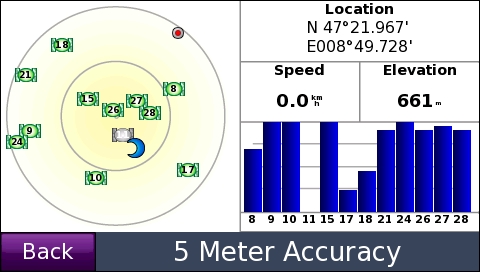

Main Menu Satellites
GARMIN Nuvi 865T - Main Menu GARMIN Nuvi 865T - Satellites
  • Status bar with GPS signal strength, Blue Tooth status, status of the battery, current time
  • Search destination
  • View map
  • Stop navigation (only shown if there is an active route)
  • Compute a detour (only shown if there is an active route)
  • Adjust volume
  • Tools (system settings, information about current position, manage data, image viewer, world clock, calculator etc., see Tools 1..2 below)
  • Position of the satellites, the sun and the moon
  • Coordinates of the current position
  • Current speed
  • Current elevation above sea level
  • Strength of the satellites' signals
  • Back to previous page
  • Accuracy of the current position indication

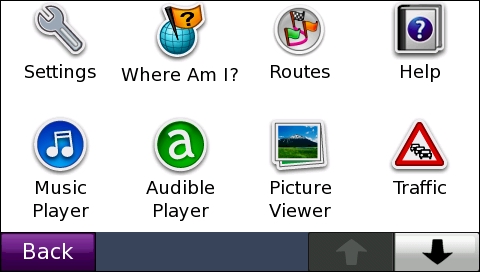

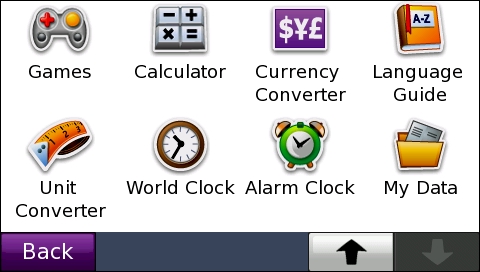

Tools (1 of 2) Tools (2 of 2)
GARMIN Nuvi 865T - Tools 1 of 2 GARMIN Nuvi 865T - Tools 2 of 2
  • Settings (system, navigation, display, time, languages (text and speech), map, safety and alarms)
  • Current position (coordinates and elevation, nearest address, nearest intersection, find nearest hospitals, police stations, gas stations and road side assistances, save current position as waypoint)
  • Route management
  • Help about using your Nüvi 865T
  • MP3 player, listen to your favorite music while travelling
  • Audible book reader, reads audible books; download audible books from the Internet
  • Picture viewer, displays pictures and provides various options, such as zooming, rotation etc.
  • Traffic messages
  • Back to previous page
  • To the next tools page
  • Various games
  • Calculator with four basic operations
  • Curreny converter
  • Language guide (demo, full featured language guide available as an option
  • Unit converter to convert units such as distances, areas, volumes, speed, weight etc. in metric and american units.
  • World clock showing current time at different locations
  • Alarm clock
  • Manage your own data ("Home", erase track, manage your own waypoints)
  • Back to previous page
  • To the previous tools page

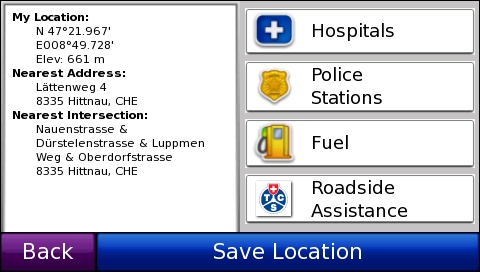

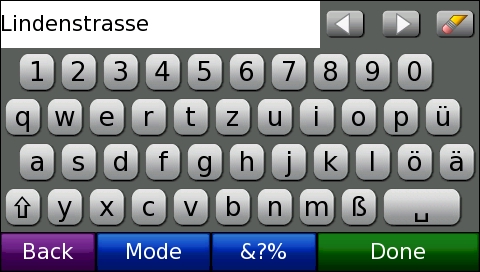

Current Position Text Entry
GARMIN Nuvi 865T - Current Position GARMIN Nuvi 865T - Text Entry
  • Current position (coordinates and elevation)
  • Nearest address
  • Nearest intersection
  • Find nearest hospitals
  • Find nearest police stations
  • Find nearest gas stations
  • Find nearest road side assistances
  • Back to previous page
  • Save current position as waypoint
  • Field for text entry
  • Move cursor left
  • Move cursor right
  • Delete last character
  • Keyboard
  • Back to previous page
  • Keyboard mode (language)
  • Switch to special characters
  • Finish text entry

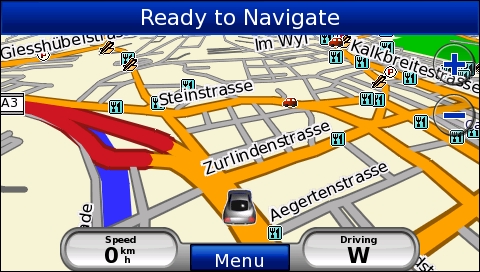

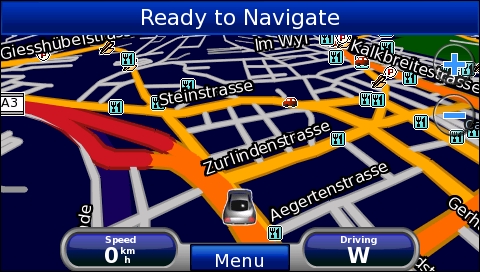

Map (day mode) Map (night mode)
GARMIN Nuvi 865T - Map in day mode GARMIN Nuvi 865T - Map in night mode
  • GPS status
  • Map in 3D view in day mode with current position (grey car)
  • Current speed
  • To main menu
  • Current heading
  • GPS status
  • Map in 3D view in night mode with current position (grey car)
  • Current speed
  • To main menu
  • Current heading

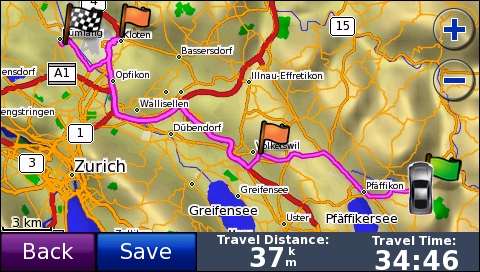

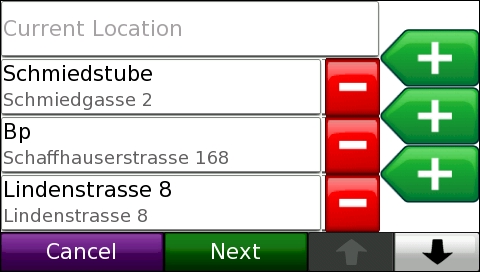

Route Vias
GARMIN Nuvi 865T - Route GARMIN Nuvi 865T - Vias
  • Planned route (pink line) with current position (grey car), start (green flag), vias (orange flags) and final destination (black and white flag)
  • Back to previous page
  • Save current route
  • Length of the planned route
  • Estimated travel time for the complete route
  • Start of the route
  • Vias, also known as intermediate destinations (you may move or delete each via point)
  • Insert new via point
  • Back to previous page
  • Re-calculate the route, the GPS may optimize the order of the vias to find the shortest route
  • To the next vias

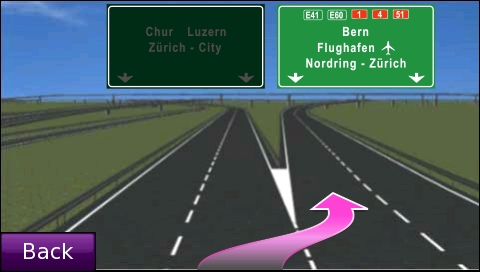

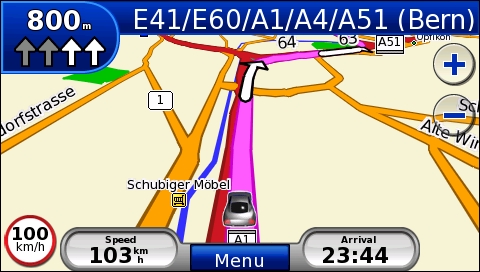

Direction Lane Assistant
GARMIN Nuvi 865T - Direction GARMIN Nuvi 865T - Lane Assistant
  • Direction with distance to next turn and type of turn
  • Name of the road onto which you will turn
  • Map with current position (grey car), planned route (pink line), next turn (white arrow) and current speed limit (sign with red circle)
  • Current speed
  • To main menu
  • Estimated arrival time at final destination
  • Detailed view of the lanes at the next turn
  • The arrow indicates which lane to take
  • Back to previous page

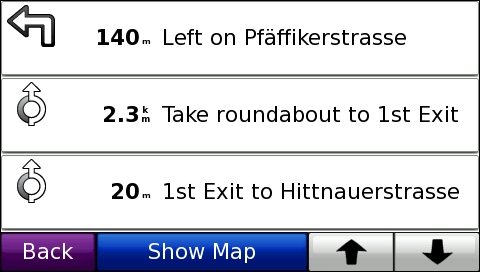

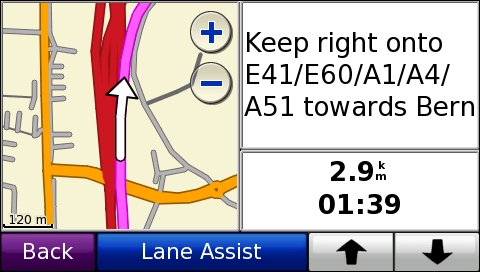

Directions Autozoom
GARMIN Nuvi 865T - Directions GARMIN Nuvi 865T - Autozoom
  • Type of and distance to next turn
  • Direction
  • Back to previous page
  • Show route on map
  • To the previous directions
  • To the next directions
  • Highly zoomed map with detailed view of next turn (will be display automatically when approaching a turn)
  • Change scale ("-" and "+")
  • Direction
  • Distance to next turn
  • Estimated time to next turn
  • Back to previous page
  • Lane assistant (only shown if available for that particular turn)
  • To previous turn
  • To next turn

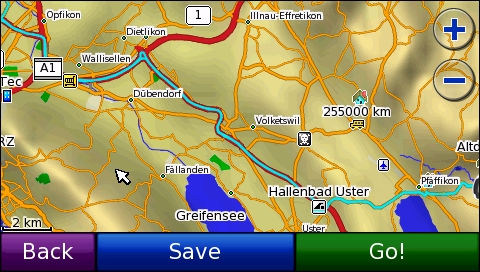

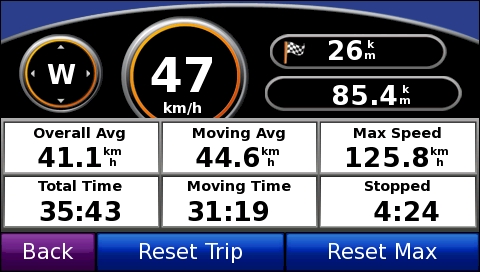

Trip Computer Track
GARMIN Nuvi 865T - Trip Computer GARMIN Nuvi 865T - Track
  • Current moving direction
  • Current speed
  • Distance to final destination
  • Travelled distance (odometer)
  • Average speed including stopped time
  • Average speed without stopped time
  • Maximum speed
  • Total time since last reset
  • Total moving time
  • Total stopped time
  • Back to previous page
  • Reset trip data (odometer, average speed, time)
  • Reset maximum speed
  • Map with travelled path (track, blue line), you may show or hide the track on the map
  • Change scale ("-" and "+")
  • Back to previous page
  • Save position (head of arrow) as waypoint
  • Navigate to position (head of arrow)

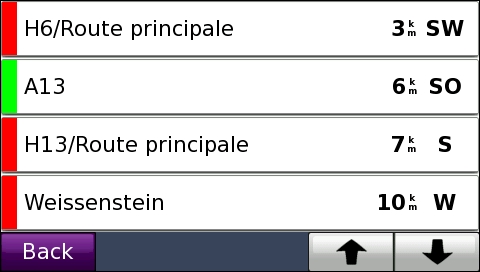

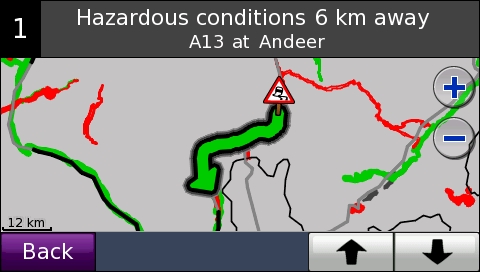

Traffic Messages Traffic Message
GARMIN Nuvi 865T - Traffic Messages GARMIN Nuvi 865T - Traffic incident on map
  • Color code (green = traffic still flowing, yellow = traffic partially congested, red = traffic is heavily congested or stopped)
  • Name of affected road (touch to display traffic incident on the map)
  • Distance from current location to traffic incident
  • Direction from current location to traffic incident
  • Back to previous page
  • Previous traffic incidents
  • Next traffic incidents
  • Type of traffic incident and distance from current position to incident
  • Name of affected road
  • Color code (green = traffic still flowing, yellow = traffic partially congested, red = traffic is heavily congested or stopped)
  • Change scale ("-" and "+")
  • Back to previous page
  • Previous traffic incident
  • Next traffic incident

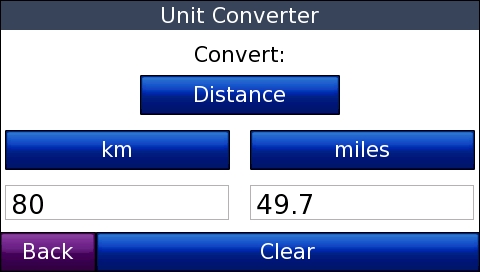

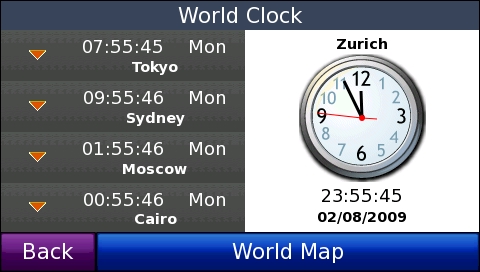

World Clock Unit Converter
GARMIN Nuvi 865T - World Clock GARMIN Nuvi 865T - Unit Converter
  • Cities with time and day of week (choose cities from list)
  • Time and date at current position
  • Back to previous page
  • Show world map with daylight and night
  • Choose unit (distance, area, volume, speed, weight, temperature, fuel consumption)
  • Input (amount and unit)
  • Result (amount and unit)
  • Back to previous page
  • Clear input field

To table of contents


Price:

To table of contents


Options:

External microphone for hands free set for mobile phone Add item to shopping basket CHF 17 / EUR 15 [Picture and details]
Remote control to activate voice control
(One such remote control comes with the Nüvi 865T)
Add item to shopping basket CHF 65 / EUR 57 [Picture and details]
Mounting kit with suction cup including adhesive disk to be fixed on the dashboard
(Does not include mounting bracket)
Add item to shopping basket CHF 18 / EUR 16 [Picture and details]
Adjustable mounting kit with suction cup including adhesive disk to be fixed on the dashboard (does not include unit mount) Add item to shopping basket CHF 21 / EUR 18 [Picture and details]
Portable friction mount (new design; does not include unit mount) Add item to shopping basket CHF 45 / EUR 39 [Picture and details]
Power cord for car cigarette lighter
(A power cord combined with TMC traffic receiver with built-in FM antenna comes with the Nüvi 865T)
Add item to shopping basket CHF 24 / EUR 21 [Picture and details]
Power supply without USB cable Add item to shopping basket CHF 22 / EUR 19 [Picture and details]
Power supply with USB cable Add item to shopping basket CHF 24 / EUR 21 [Picture and details]
Rechargeable battery (Li-ion)
(One such battery comes with the Nüvi 865T)
Add item to shopping basket CHF 39 / EUR 34 [Picture and details]
USB cable for data exchange and power supply
(One such cable comes with the Nüvi 865T)
Add item to shopping basket CHF 15 / EUR 13 [Picture and details]
External GPS antenna Add item to shopping basket CHF 44 / EUR 38 [Picture and details]
Extension cable for external GPS antenna Add item to shopping basket CHF 45 / EUR 39 [Picture and details]
Adapter cable BNC to MCX for external GPS antenna Add item to shopping basket CHF 29 / EUR 25 [Picture and details]
Adapter cable MCX to BNC for external GPS antenna Add item to shopping basket CHF 39 / EUR 34 [Picture and details]
Soft case Add item to shopping basket CHF 21 / EUR 18 [Picture and details]
Leather case Add item to shopping basket CHF 31 / EUR 27 [Picture and details]
4.0 GB micro SDHC memory card including µSD to SD adapter Add item to shopping basket CHF 9 / EUR 8 [Picture and details]
8.0 GB micro SDHC memory card including µSD to SD adapter Add item to shopping basket CHF 16 / EUR 14 [Picture and details]
16.0 GB micro SDHC memory card including µSD to SD adapter Add item to shopping basket CHF 19 / EUR 17 [Picture and details]
Travel guide Marco Polo Northwest Europe (Belgium, Great Britain, Ireland, Luxembourg, Netherlands) Add item to shopping basket CHF 30 / EUR 26 [Picture and details]
Travel guide Fodor's North America (Canada and USA) Artikel in Warenkorb legen CHF 45 / EUR 39 [Picture and details]

All options for the GARMIN Nüvi 865T in detail, find maps here.

To table of contents


Downloads:

Quick start manuals, owner's manuals and firmware upgrade for GARMIN Nüvi 865T:

Quick start manuals:


Owner's manuals:

Documents marked with an asterisks (*) describe the GARMIN Nüvi 860, which provides the same features as the Nüvi 865T including voice activated navigation. The only feature missing is the lane assistant, please find a description of this feature in the documents for the Nüvi 765T

Firmware Upgrade:
Get Acrobat Reader If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.
