Hand held GPS device with large color display with touchscreen, integrated base map, USB interface, slot for optional µSD memory card and auto-routing (requires a map which is available as an option).

The GARMIN Oregon 200 is very easy to use thanks to its touchscreen and its user friendly graphical interface. It supports multiple languages and has an integrated base map. The Oregon 200 has 24 MB of built-in memory to store optional maps with even more detailed information, such as local roads, restaurants and points of interest. In addition, it has a slot for a standard µSD memory card. The built-in USB interface supports data exchange with a PC. In order to use the Oregon's auto-routing feature which computes a route from the current location to any destination, an optional map which supports routing is required, such as City Navigator Europe NT. See MapSource for a list of available maps. The very sensitive antenna provides navigation information outdoors, in a car, in a train or even in an airplane (see MapSource examples).

Comparison Oregon models:

All models provide similar functions; these are the main differences:

Feature / Model	Internal memory (total / free)	Barometrical altimeter	Electronical compass	Receive data from optional ANT sensor	Pre-installed topographic map of Europe	Camera	WiFi Connect IQ	Price
Oregon 200	24 MB 24 MB	-	-	-	-	-	-	Discontinued
Oregon 300	850 MB 850 MB	YES	2D¹	YES	-	-	-	Discontinued
Oregon 400t	3.7 GB 1.5 GB	YES	2D¹	YES	YES	-	-	Discontinued
Oregon 450	900 MB 900 MB	YES	3D¹	YES	-	-	-	Discontinued
Oregon 450t	3.7 GB 1.5 GB	YES	3D¹	YES	YES	-	-	Discontinued
Oregon 550t	3.7 GB 297 MB	YES	3D¹	YES	YES	3.2 Megapixel	-	Discontinued
Oregon 600	1.7 GB 1.7 GB	YES	3D¹	YES	-	-	-	Discontinued
Oregon 600t	3.6 GB 815 MB	YES	3D¹	YES	YES	-	-	Discontinued
Oregon 650	3.6 GB 3.5 GB	YES	3D¹	YES	-	8 Megapixel	-	Discontinued
Oregon 650t	7.2 GB 4.4 GB	YES	3D¹	YES	YES	8 Megapixel	-	Discontinued
Oregon 700	3.54 GB 3.46 GB	YES	3D¹	YES	-	-	YES	Discontinued
Oregon 750	3.54 GB 3.46 GB	YES	3D¹	YES	-	8 Megapixel	YES	Discontinued
Oregon 750t	7.2 GB 2.6 GB	YES	3D¹	YES	YES (Topo Active)	8 Megapixel	YES	Discontinued

¹) 2D means, you must hold the device level for reliable readings. 3D stands for a tilt-compensated compass which does not require the device to be level for accurate readings.

Please find a table with detailed technical data in our Buyer's guide.

Contents: Features - Overview - Main Pages - Price - Options - Downloads - Order

Features:

Portable, easy to use, robust, waterproof to IPX-7 standards (withstands 30 minutes under water up to 1 meter (3 feet) deep).
Large TFT color display with background illumination (256 colors, 240x400 pixel).
Easy to use thanks to its touchscreen plus its user friendly, graphical interface.
Multilingual user interface in Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Lithuanian, Norwegian, Polish, Portuguese, Russian, Spanish, Slovak, Slovenian, Swedish and Turkish.
Integrated 12 channel GPS receiver with very sensitive built-in antenna.
Integrated world wide 3D map with countries, bodies of water, major cities and major highways.
24 MB of built-in memory to transfer even more detailed maps with local roads, points of interest etc. from a PC to the GPS.
Routing speed: 7 (see GPS Routing Speed for details). An optional map which supports routing is required, such as City Navigator Europe NT.
Slot for standard µSD memory card. Memory cards are available as an option.
Powered by batteries (2x AA, last about 16 h) or by an external 12 V power source, e.g. from a car's cigarette lighter (power cord available as an option)
Short time to first fix (TTFF¹: approx. 1 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 30 seconds after a cold start, meaning there are no valid coordinates of the satellites available)
Supports WAAS (improves accuracy of position indication from typical better than 15 m (49 feet) to typical better than 3 m (10 feet))
Supports more than 100 different datum (coordinate systems)
Supports various display formats include the Swiss Grid
Firmware stored in Flash-Memory, can be updated by the user
Operating temperatures -20 .. 70°C (-4° .. 158°F)
USB interface (USB connection cable included)
Dimensions: 114x60x35 mm (4.5x2.3x1.4 inches)
Weight: 195 g (6.8 ounces, without batteries)

¹) TTFF: Time To First Fix, time until the first information about the current position is acquired.

Information for navigation:

5 preset profiles (Recreational, Geocaching, Automotive, Marine, Fitness). Provides fast switching between different configuration settings of the device. Supports also user defined profiles.
Stores 1000 waypoints with name (30 characters), icon (choice of more than 150 symbols), comments (50 characters), coordinates, elevation and depth.
Stores 50 reversible routes
World map with zoom function in the range of 800 km to 20 m (500 mi to 80 ft)
Information on the map displayed in 5 levels of details.
Find waypoints, cities, points of interest, addresses etc. The objects you can actually search for depend on the maps loaded on the GPS. Various maps are available as an option, see list of MapSource products.
Current position (longitude, latitude, altitude)
Current accuracy of the position information
Current time
Current bearing
Current, average and maximum speed
Trip duration and distance (Odometer)
Records the travelled path (track), capacity 10'000 track points
Stores 20 travelled routes (tracks)
Supports metric and U.S. units

Additional features:

Image viewer (when connected to a computer, the GPS appears as an additional drive to transfer pictures)
Geocaches
Wherigo (toolset for creating and playing GPS-enabled adventures in the real world, see www.wherigo.com)
Time of sunrise and sunset, moonrise and moonset, current phase of the moon
Information regarding hunting and fishing
Area calculation
Calculator
Stop watch
Calendar
Position and signal strength of the satellites

To table of contents

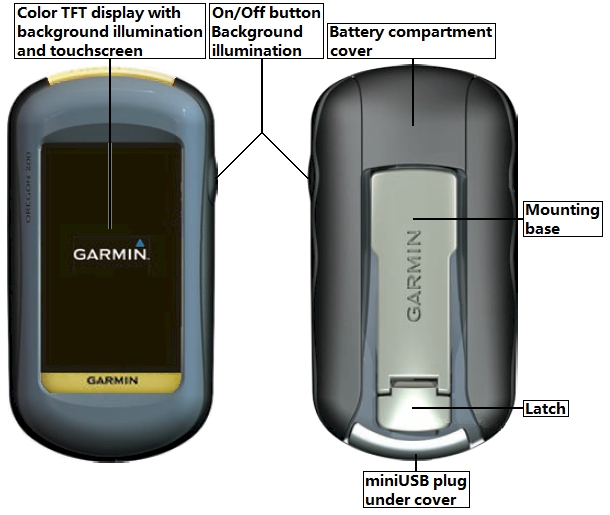

GARMIN Oregon 200 overview:

To table of contents

Main pages of the GARMIN Oregon 200:

Note: The images below show the display of the Oregon 200 in true resolution (240x400 pixels). This does not necessarily mean that the display is shown it its true size (38x63 mm). The actual size of these images depends on the properties of your display. Many of the pages are configurable, the pictures are just examples. For the data fields, there is a choice of 38 different values, see selection.

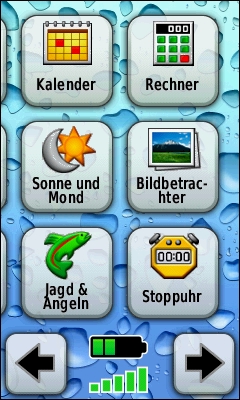

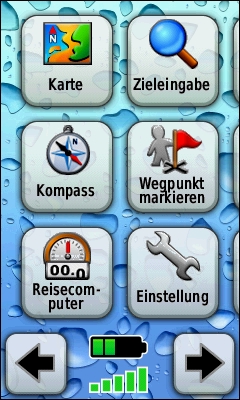

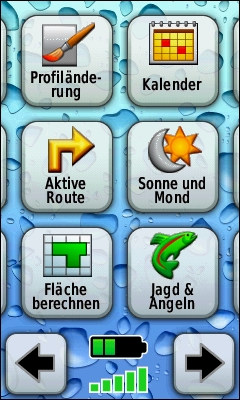

Main Menu 1	Main Menu 2	Main Menu 3	Main Menu 4

Map Find destination Compass Save current position as waypoint Trip computer Settings To previous menu page Battery charge level Quality of the GPS signal To next menu page	3D map (only available if maps which support this feature are loaded) Waypoint manager Geocaches Route planner Wherigo Track manager To previous menu page Battery charge level Quality of the GPS signal To next menu page	Profiles Calendar Active route Sunrise, sunset, moonrise, moonset; moon phase Area calculation Hunting and fishing To previous menu page Battery charge level Quality of the GPS signal To next menu page	Calendar Calculator Sunrise, sunset, moonrise, moonset; moon phase Picture viewer Hunting and fishing Stop watch To previous menu page Battery charge level Quality of the GPS signal To next menu page

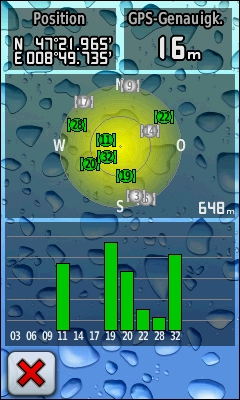

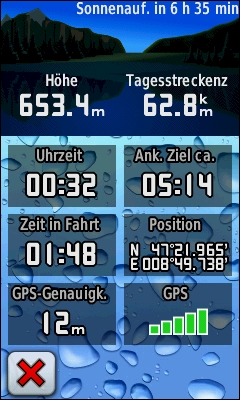

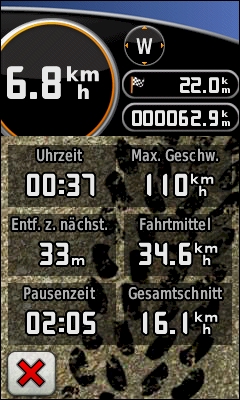

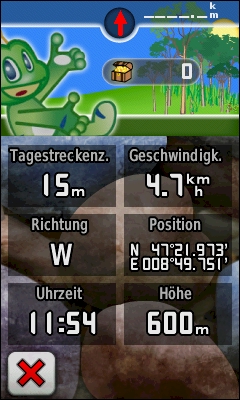

Satellites	Trip Computer Recreational Mode	Trip Computer Automotive Mode	Trip Computer Geocaching Mode

Current location Accuracy of the position indication Position of the satellites in the sky Current elevation above sealevel Strength of the satellites signals	Time until sunrise Current elevation above sealevel Travelled trip distance Time of day Estimated arrival time at destination Moving time Current position Accuracy of the position indication Strength of the satellites signals For each data field, you can choose from 38 different values¹)	Current speed Current heading Distance to destination Travelled trip distance Time of day Maximum speed Distance to next turn Average speed (moving time only) Stopped time Average speed (total time) For each data field, you can choose from 38 different values¹)	Distance and direction to geocache Number of geocaches found Travelled trip distance Current speed Current heading Current position Time of day Current elevation above sealevel For each data field, you can choose from 15 different values²)

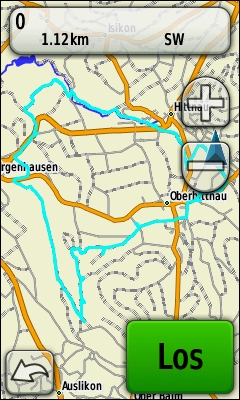

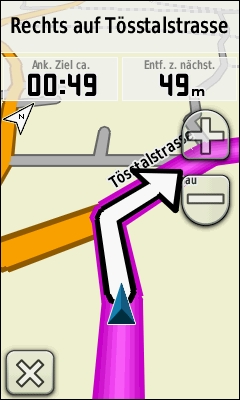

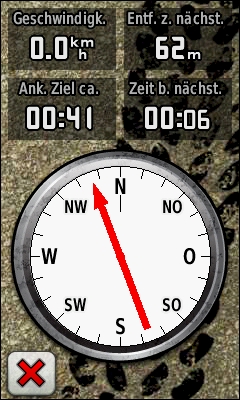

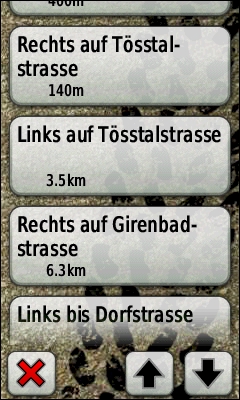

Navigation	Navigation Map	Route	Track

Current speed Distance to next turn Estimated arrival time at destination Estimated travel time to next turn Heading to next turn For each data field, you can choose from 38 different values¹)	Note: This feature requires an optional map which supports routing, such as City Navigator Europe NT, see MapSource. Direction Estimated arrival time at destination Distance to next turn Map with current position (blue triangle), next turn (white arrow) and planned route (violet line) For each data field, you can choose from 38 different values¹)	Note: This feature requires an optional map which supports routing, such as City Navigator Europe NT, see MapSource. Turns with name, type of turn and distance	Name of the track Travelled path (track) on map (blue line) You can use a track as a route, click on "Go" to start navigation

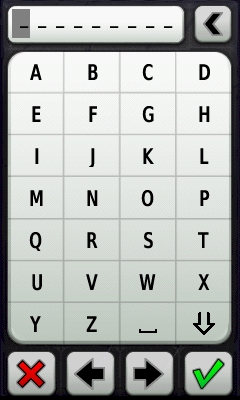

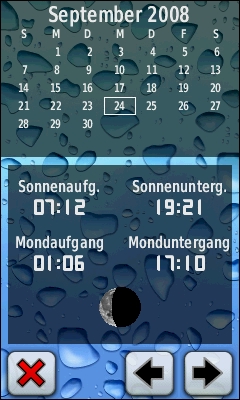

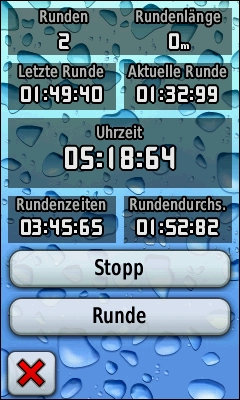

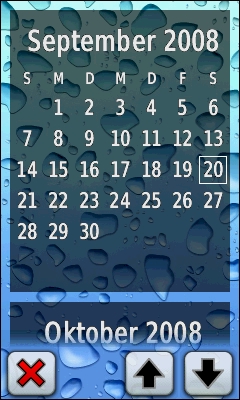

Calendar	Sun and Moon	Stop Watch	Text Entry

Calendar with current day	Calendar Sunrise Sunset Moonraise Moonset Moon phase	Number of laps Lenght of lap Elapsed time last lap Elapsed time current lap Elapsed time (stop watch) Elapsed time until last completed lap Average lap time Stop Mark lap	Various functions require the user to enter text or numbers. Chose a character by simply touching the screen. Entry field Backspace Characters Quit Previous character page Next character page Enter

Data fields:

For each data field, you can choose one from the following 38 values.
You can configure the device to show values in metric, english or nautic units.

No	Name	Explanation
1	Accuracy of GPS	The current accuracy of your GPS determined position.
2	Battery Level	Battery charge level.
3	Bearing	The compass direction from a position to a destination measured to the nearest degree; also called an azimuth. In a GPS receiver, bearing usually refers to the direction to a waypoint.
4	Course	The direction from the beginning landmark of a course to its destination (measured in degrees, radians, or mils) or the direction from a route waypoint to the next waypoint in the route segment.
5	Distance to Destination	Current distance to the final destination.
6	Distance to Next	Current distance to the next waypoint or turn.
7	Elevation	Current altitude above sea level.
8	ETA at Destination	Estimated arrival time at the final destination.
9	ETA at Next	Estimated arrival time at the next turn.
10	Glide Ratio	The ratio of horizontal distance travelled to vertical distance.
11	Glide Ratio to Destination	The glide ratio required to descend from your current position and elevation to the destination's elevation.
12	GPS Signal Strength	Strength of satellites' signals.
13	Heading	The direction in which you are currently moving.
14	Location (lat/lon)	Current location as latitude/longitude coordinates.
15	Location (selected)	Current location indicated in the selected format (datum).
16	Odometer	Total distance travelled since last reset*).
17	Off Course	The distance you are off the desired course.
18	Pointer	Arrow that indicates the direction to travel to the next point on a route.
19	Speed	Current speed.
20	Speed - Maximum	Maximum speed since last reset*).
21	Speed - Moving Avg.	Average speed without the time with no motion since the last reset*).
22	Speed - Overall Avg.	Average speed including the time with no motion since the last reset*).
23	Sunrise	Time of sunrise at the current position.
24	Sunset	Time of sunset at the current position.
25	Time of Day	Current time.
26	Time to Destination	Estimated travel time to the final destination.
27	Time to Next	Estimated travel time to the next waypoint (turn, crossing etc.).
28	To Course	Direction to the planned course.
29	Trip Odometer	Travelled distance since last reset*).
30	Trip Time - Moving	Time with motion since last reset*).
31	Trip Time - Stopped	Time without motion since last reset*).
32	Trip Time - Total	Total time since last reset*).
33	Turn	The direction of and the distance to the next turn on a route.
34	Velocity Made Good	The rate of closure to the destination, based upon your current speed and course.
35	Vertical Speed	Current ascending or descending speed.
36	Vertical Speed to Destination	Required rate of ascent or descent to reach the final destination.
37	Waypoint at Destination	Name of the waypoint at the final destination.
38	Waypoint at Next	Name of the next waypoint.

*) You may reset the trip-counters, the Odometer and the Maximum Speed independently of each other.

To table of contents

Price:

This model has been discontinued; however, you can still order options for the Oregon 200.

To table of contents

Options:

Car mounting kit, including: Mounting kit with suction cup Adhesive disk to be fixed on the dashboard Power cord for car cigarette lighter	CHF 64	[Picture and details]
Mounting kit with suction cup including adhesive disk to be fixed on the dashboard (Does not include mounting bracket)	CHF 20	[Picture and details]
Adjustable mounting kit with suction cup including adhesive disk to be fixed on the dashboard (Does not include mounting bracket)	CHF 27	[Picture and details]
Power cord for car cigarette lighter (one such power cord comes with the car navigation pack)	CHF 29	[Picture and details]
Power supply without USB cable	CHF 17	[Picture and details]
USB cable for data exchange with PC (one such USB cable comes with the Oregon 200)	CHF 14	[Picture and details]
Belt clip	CHF 13	[Picture and details]
Long lanyard	CHF 7	[Picture and details]
Retractable lanyard	CHF 28	[Picture and details]
Bike mounting kit	CHF 20	[Picture and details]
4.0 GB micro SDHC memory card including µSD to SD adapter	CHF 9	[Picture and details]
8.0 GB micro SDHC memory card including µSD to SD adapter	CHF 16	[Picture and details]
16.0 GB micro SDHC memory card including µSD to SD adapter	CHF 19	[Picture and details]

All options for the GARMIN Oregon 200 in detail.

MapSource, various products with world or country map (some require a Windows PC and a cable for data exchange).

To table of contents

Downloads:

Here we provide additional documentation and software updates:

Owner's manual (as PDF):
- English (1.1 MB)
- French (1.2 MB)
- German (1.2 MB)
- Italian (1.1 MB)
Quick start guide (as PDF):
- English (536 kB)
- French (725 kB)
- German (665 kB)
- Italian (688 kB)
Firmware Upgrade V4.20 (Use WebUpdater to install this version)
List of changes made with Firmware Upgrades
