Hand held GPS receiver with color display with touchscreen, integrated base map, USB interface.

The GARMIN Dakota 10 is very easy to use thanks to its touchscreen and its user friendly graphical interface. It supports multiple languages and has an integrated base map. The Dakota 10 has 850 MB of built-in memory to store optional maps with even more detailed information, such as local roads, restaurants and points of interest. The built-in USB interface supports data exchange with a PC. In order to use the Dakota's auto-routing feature which computes a route from the current location to any destination, an optional map which supports routing is required, such as City Navigator Europe NT. See MapSource for a list of available maps. The very sensitive antenna provides navigation information outdoors, in a car, in a train or even in an airplane (see MapSource examples).

Differences between the various Dakota models:

All models provide similar functions; these are the main differences:

Feature / Model	Dakota 10	Dakota 20
Internal memory	850 MB	850 MB
Slot for memory card	-	YES
Barometrical altimeter	-	YES
Electronical compass	-	3D¹
Receive data from optional heart rate monitor	-	YES
Receive data from optional speed / cadence sensor	-	YES
Price	Discontinued	Discontinued

Compass¹)
2D: The GPS must be hold level for accurate readings.
3D: Tilt-compensated compass, does not require to hold the device level for accurate readings.

Contents: Features - Overview - Main Pages - Prices - Options - Downloads - Order

Features:

Portable, easy to use, robust, waterproof to IPX-7 standards (withstands 30 minutes under water up to 1 meter (3 feet) deep).
TFT color display with background illumination (256 colors, 160x240 pixel).
Easy to use thanks to its touchscreen plus its user friendly, graphical interface.
Multilingual user interface in Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Lithuanian, Norwegian, Polish, Portuguese, Russian, Spanish, Slovak, Slovenian, Swedish and Turkish.
Integrated 12 channel GPS receiver with very sensitive built-in antenna.
Integrated world wide 3D map with countries, bodies of water, major cities and major highways.
850 MB of built-in memory to transfer even more detailed maps with local roads, points of interest etc. from a PC to the GPS.
Powered by batteries (2x AA, last about 20 h) or by an external 12 V power source, e.g. from a car's cigarette lighter (power cord available as an option)
Short time to first fix (TTFF¹: approx. 1 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 30 seconds after a cold start, meaning there are no valid coordinates of the satellites available)
Supports WAAS (improves accuracy of position indication from typical better than 15 m (49 feet) to typical better than 3 m (10 feet))
Supports more than 100 different datum (coordinate systems)
Supports various display formats include the Swiss Grid
Firmware stored in Flash-Memory, can be updated by the user
Operating temperatures -20 .. 70°C (-4° .. 158°F)
USB interface (USB connection cable included)
Dimensions: 100x55x33 mm (3.9x2.2x1.3 inches)
Weight: 150 g (5.25 ounces, without batteries)

¹) TTFF: Time To First Fix, time until the first information about the current position is acquired.

Information for navigation:

Preset profiles provide fast switching between different configuration settings of the device. Supports also user defined profiles.
Stores 1000 waypoints with name (30 characters), icon (choice of more than 150 symbols), comments (50 characters), coordinates, elevation and depth.
Stores 50 reversible routes
World map with zoom function in the range of 800 km to 20 m (500 mi to 80 ft)
Information on the map displayed in 5 levels of details.
Find waypoints, cities, points of interest, addresses etc. The objects you can actually search for depend on the maps loaded on the GPS. Various maps are available as an option, see list of MapSource products.
Current position (longitude, latitude, altitude)
Current accuracy of the position information
Current time
Current bearing
Current, average and maximum speed
Trip duration and distance (Odometer)
Records the travelled path (track), capacity 10'000 track points
Stores 200 travelled routes (tracks)
Supports metric and U.S. units

Additional features:

Geocaches
Time of sunrise and sunset, moonrise and moonset, current phase of the moon
Information regarding hunting and fishing
Area calculation
Calculator
Stop watch
Calendar
Position and signal strength of the satellites

To table of contents

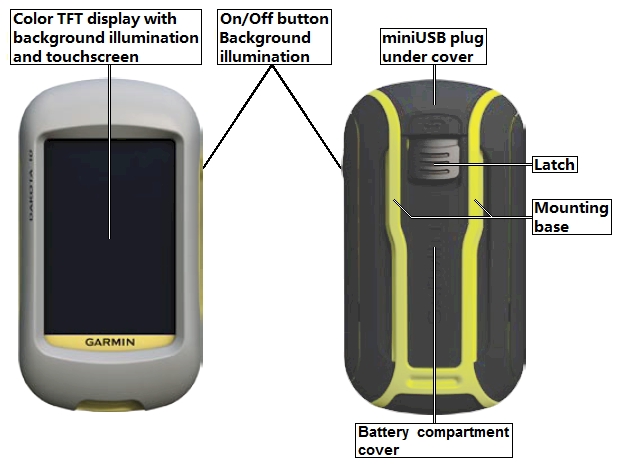

GARMIN Dakota 10 overview:

To table of contents

Main pages of the GARMIN Dakota 10:

Note: The images below show the display of the Dakota 10 in true resolution (160x240 pixels). This does not necessarily mean that the display is shown it its true size (36x55 mm). The actual size of these images depends on the properties of your display. Many of the pages are configurable, the pictures are just examples. For the data fields, there is a choice of 38 different values, see selection. Unlike the Dakota 20, the Dakota 10 has no barometrical altimeter and therefore no menu item elevation profile. However, it shows the elevation profile of a track, see track manager.

Main Menu 1	Main Menu 2	Main Menu 3	Main Menu 4

Show map Find destination Show compass Save current position as waypoint Show trip computer Manage settings To previous menu page Show battery charge level Show quality of the GPS signal To next menu page	Manage Geocaches Manage profiles Manage waypoints Manage active route Manage routes Manage tracks To previous menu page Show battery charge level Show quality of the GPS signal To next menu page	Show calendar Area calculation Show sunrise, sunset, moonrise, moonset; moon phase Calculator Information about hunting and fishing Stop watch To previous menu page Show battery charge level Show quality of the GPS signal To next menu page	Area calculation Increase position indication by averaging multiple samples Calculator Mark man over board location Stop watch To previous menu page Show battery charge level Show quality of the GPS signal To next menu page

Satellites	Sun/Moon	Trip Computer Small Font	Trip Computer Large Font

Coordinates of the current location Position of the satellites in the sky Current elevation above sealevel Strength of the satellites signals Back to main menu Accuracy of the position indication	Calendar with selected date Time of sunrise at selected location on selected date Time of sunset at selected location on selected date Time of moonrise at selected location on selected date Time of moonset at selected location on selected date Phase of moon Back to main menu Select location Previous day Next day	Current heading Current speed Distance to destination Travelled trip distance Current speed Maximum speed Time moving Average speed (moving time only) Stopped time Average speed (total time) Back to main menu Change dashboard (profile) Switch between small font as shown above and large font as shown on the right (touch icon buttom right). For each data field, you can choose from 38 different values¹)	Current heading Current speed Distance to destination Travelled trip distance Current speed Time moving Back to main menu Change dashboard (profile) Switch between large font as shown above and small font as shown on the left (touch icon buttom right). For each data field, you can choose from 38 different values¹)

Base Map	City Navigator Europe (Street map, overview)	City Navigator Europe (Street map with points of interest)	Topographical map of Switzerland

Pre-installed base map with major cities and highways, example Zürich and vicinity.	View of optional street map of Europe, example center of Zürich city (street maps of various continents are available as options, see MapSource).		View of optional topographical map of Switzerland, example Wengen (topographical maps of various countries are available as options, see MapSource).

Navigation (Compass)	Track	Navigation Map	Route

Current speed Distance to next turn Estimated arrival time at destination Estimated travel time to next turn Heading to next turn Back to main menu Change dashboard (profile) For each data field, you can choose from 38 different values¹)	Travelled path (track) on map (dark red line, color selectable) You can use a track as a route Back to main menu This screenshot has been taken with the optional topographical map of Switzerland (topographical maps of various countries are available as options, see MapSource).	Note: This feature requires an optional map which supports routing, such as City Navigator Europe NT, see MapSource. Direction Estimated arrival time at destination Distance to next turn Map with current position (blue triangle), next turn (white arrow) and planned route (violet line) Back to main menu For each data field, you can choose from 38 different values¹)	Note: This feature requires an optional map which supports routing, such as City Navigator Europe NT, see MapSource. Turns with street or exit name, direction and distance Back to main menu To previous directions To next directions

Calendar	Calculator	Stop Watch	Text Entry

Calendar with current day Back to main menu To previous month To next month	Result of last calculation Function keys for memory Number and operations keys Back to main menu	Number of laps Length of lap Elapsed time last lap Elapsed time current lap Elapsed time (stop watch) Elapsed time until last completed lap Average lap time Stop Mark lap Back to main menu	Various functions require the user to enter text or numbers. Chose a character by simply touching the screen. Entry field Backspace Characters Quit Previous character page Next character page Enter

Data fields on pages with user selectable data fields:

For each data field, you can choose one from the following 38 values.
You can configure the device to show values in english or metric units.

No	Name	Explanation
1	Accuracy of GPS	The current accuracy of your GPS determined position.
2	Battery Level	Battery charge level.
3	Bearing	The compass direction from a position to a destination measured to the nearest degree; also called an azimuth. In a GPS receiver, bearing usually refers to the direction to a waypoint.
4	Course	The direction from the beginning landmark of a course to its destination (measured in degrees, radians, or mils) or the direction from a route waypoint to the next waypoint in the route segment.
5	Distance to Destination	Current distance to the final destination.
6	Distance to Next	Current distance to the next waypoint or turn.
7	Elevation	Current altitude above sea level.
8	ETA at Destination	Estimated arrival time at the final destination.
9	ETA at Next	Estimated arrival time at the next turn.
10	Glide Ratio	The ratio of horizontal distance travelled to vertical distance.
11	Glide Ratio to Destination	The glide ratio required to descend from your current position and elevation to the destination's elevation.
12	GPS Signal Strength	Strength of satellites' signals.
13	Heading	The direction in which you are currently moving.
14	Location (lat/lon)	Current location as latitude/longitude coordinates.
15	Location (selected)	Current location indicated in the selected format (datum).
16	Odometer	Total distance travelled since last reset*).
17	Off Course	The distance you are off the desired course.
18	Pointer	Arrow that indicates the direction to travel to the next point on a route.
19	Speed	Current speed.
20	Speed - Maximum	Maximum speed since last reset*).
21	Speed - Moving Avg.	Average speed without the time with no motion since the last reset*).
22	Speed - Overall Avg.	Average speed including the time with no motion since the last reset*).
23	Sunrise	Time of sunrise at the current position.
24	Sunset	Time of sunset at the current position.
25	Time of Day	Current time.
26	Time to Destination	Estimated travel time to the final destination.
27	Time to Next	Estimated travel time to the next waypoint (turn, crossing etc.).
28	To Course	Direction to the planned course.
29	Trip Odometer	Travelled distance since last reset*).
30	Trip Time - Moving	Time with motion since last reset*).
31	Trip Time - Stopped	Time without motion since last reset*).
32	Trip Time - Total	Total time since last reset*).
33	Turn	The direction of and the distance to the next turn on a route.
34	Velocity Made Good	The rate of closure to the destination, based upon your current speed and course.
35	Vertical Speed	Current ascending or descending speed.
36	Vertical Speed to Destination	The measurement of your rate of ascent to a predetermined elevation.
37	Waypoint at Destination	Name of the waypoint at the final destination.
38	Waypoint at Next	Name of the next waypoint.

*) You may reset the trip-counters, the Odometer and the Maximum Speed separately.

To table of contents

Prices:

This model has been discontinued; however, you can still order options for the Dakota 10.

To table of contents

Options:

Car mounting kit, including: Mounting kit with suction cup Adhesive disk to be fixed on the dashboard Power cord for car cigarette lighter	CHF 64	\|	EUR 56	[Picture and details]
Mounting kit with suction cup including adhesive disk to be fixed on the dashboard (Does not include mounting bracket)	CHF 18	\|	EUR 16	[Picture and details]
Adjustable mounting kit with suction cup including adhesive disk to be fixed on the dashboard (Does not include mounting bracket)	CHF 21	\|	EUR 18	[Picture and details]
Power cord for car cigarette lighter (one such power cord comes with the car navigation pack)	CHF 29	\|	EUR 25	[Picture and details]
Power supply without USB cable	CHF 22	\|	EUR 19	[Picture and details]
USB cable for data exchange with PC (one such USB cable comes with the Dakota 20)	CHF 15	\|	EUR 13	[Picture and details]
Outdoor-kit with case	CHF 29	\|	EUR 25	[Picture and details]
Soft case	CHF 18	\|	EUR 16	[Picture and details]
Hard carrying case	CHF 45	\|	EUR 39	[Picture and details]
Case	CHF 16	\|	EUR 14	[Picture and details]
Protective skin	CHF 14	\|	EUR 12	[Picture and details]
Bike mounting kit	CHF 15	\|	CHF 15	[Picture and details]
Belt clip	CHF 13	\|	EUR 11	[Picture and details]
Long lanyard	CHF 3	\|	EUR 3	[Picture and details]
Retractable lanyard	CHF 37	\|	EUR 32	[Picture and details]
Carabiner	CHF 16	\|	EUR 14	[Picture and details]
Backpack mount (tether)	CHF 30	\|	EUR 26	[Picture and details]

All options for the GARMIN Dakota 10 in detail.

MapSource, various DVDs and CDroms with topographic and street maps (products on DVD or CDrom require a computer and a cable for data exchange).

To table of contents

Downloads:

Here we provide additional documentation and software updates:

Owner's manual (as PDF):
- English (1.1 MB)
- French (1.2 MB)
- German (1.2 MB)
- Italian (1.1 MB)
Quick start guide (as PDF):
- English (517 kB)
- French (584 kB)
- German (522 kB)
- Italian (548 kB)
Firmware Upgrade V5.80 (Use WebUpdater to install this version)
List of changes made with Firmware Upgrades

If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.

To table of contents

Order:

To order the GARMIN Dakota 10 as well as options please:

Click on the price or the shopping basket symbol to add the item you wish to purchase to the shopping basket. Your browser must accept cookies, otherwise the shopping basket won't work.
If the shopping basket does not work, please use this form.

Please read our terms and conditions.

To table of contents

Specifications and packaging of the products are subject to change without notice.
