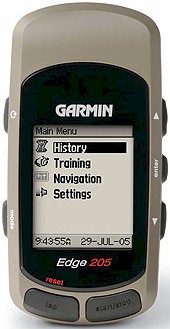

GARMIN Edge 205

Small GPS receiver, designed as personal training assistant and bike computer with high-sensitive SiRFstar III antenna, large, easy to read gray scale display and USB interface.

As a personal training assistant, the GARMIN Edge 205 records the travelled path (track), distance, time, computes the calories burned and helps to achieve your personal workout goals. The device is very easy to use, supports multiple languages and has an extremely sensitive antenna. It is the perfect partner for any biking activities. The built-in USB interface supports data exchange with a PC

This device is especially well suited to provide information about your outdoor activities (track, speed, maximum speed, distance, time a.s.o.). Use the function "mark waypoint" to get the coordinates of the current location. The device also shows the current location in relation to user defined waypoints or routes.

Differences between the various Edge models:

All models provide similar functions; these are the main differences:

Feature / Model Display Touchscreen Shows map Slot for µSD memory card Barometrical altimeter Heart rate, speed/cadence Data fields Price
Edge 205 gray scale
128x160
- - - - - 23 Discontinued
Edge 305 gray scale
128x160
- - - YES YES 32 Discontinued
Edge 500 gray scale
128x160
- - - YES YES 45 Discontinued
Edge 510 color
176x220
YES - - YES YES 84 Discontinued
Edge 520 color
200x265
- - - YES YES 135 From CHF 318
From EUR 278
Edge 605 color
176x220
- YES YES - - 23 Discontinued
Edge 705 color
176x220
- YES YES YES YES 32 Discontinued
Edge 800 color
160x240
YES YES YES YES YES 69 Discontinued
Edge 810 color
160x240
YES YES YES YES YES 84 Discontinued
Edge 1000 color
240x400
YES YES YES YES YES 94 From CHF 558
From EUR 487

Please find a table with detailed technical data in our Buyer's guide.


Contents: Features - Overview - Main Pages - Training Center - Price - Options - Downloads - Order




GARMIN Edge 205

Features:

  • Best suited to be fixed on a bike, robust, very handy
  • Easy to read display with background illumination (128x160 pixels, 4 level gray scale)
  • Multilingual user interface in Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Slovakian, Slovenian, Spanish and Swedish
  • Integrated 12 channel GPS receiver with very sensitive built-in SiRFstar III antenna
  • Powered by built-in, rechargeable battery (lasts about 12 h), battery charger included
  • Short time to first fix (TTFF¹: approx. 15 seconds after a warm start, meaning there are valid coordinates of the satellites available, or approx. 45 seconds after a cold start, meaning there are no valid coordinates of the satellites available)
  • Firmware stored in Flash-Memory, can be updated by the user
  • Operating temperatures -20 .. 60°C (-4° .. 140°F)
  • USB interface (connection cable included)
  • Dimensions: 44x94x23 mm (1.75x3.7x0.9 inches)
  • Weight: 88 g (3.1 ounces)
  • Water resistant up to approx. 3 feet (1 meter) for about 30 minutes (IPX7)

¹) TTFF: Time To First Fix, time until the first information about the local position is acquired.

Information about your training:

  • Personal profile: Stores personal information such as gender, weight and date of birth (in order to calculate the calories burned)
  • Bike profile: Stores the weight of three different bikes.
  • Stop watch with split times (laps). Records split times either manually by pressing the "lap" key or automatically based on a user defined distance or position.
  • Auto pause: Stops the watch automatically if the current speed drops below a user defined value, e.g. when waiting at a red light or during a short break.
  • Speed alert: Goes off when the current speed exceeds a user defined upper limit or when the current speed drops below a user defined lower limit.
  • Distance alert: Goes off after you have travelled a user defined distance. The alert can be set to go off only once or repetitive.
  • Time alert Goes off after a user defined time period. The alert can be set to go off only once or repetitive.
  • Virtual Partner: This unique feature helps you to achieve certain goals for your workout. Choose one of the following combinations:
    1. Distance & Time: Set the distance for your workout and the time you intend to achieve. Forerunner computes the speed required.
    2. Time & Speed: Set the time and the speed for your workout.
    3. Distance & Speed: Set the distance and the speed for your workout.
    The virtual partner will keep exactly the speed required to achieve the goal you have set. The Edge 205 will constantly measure your current speed and compares it to the virtual partner's speed. It will ask you to speed up or slow down as needed and it shows on the display whether you are ahead or behind your virtual partner.
  • History: The Edge 205 keeps track of your workouts. It stores the date, time, number of laps, duration, distance, average speed, calories burned, average and maximum heart rate on a daily basis. It also provides weekly overviews and running totals for the duration, distance and calories burned.
  • Navigation: Indicates your current location in relation to user defined waypoints. You can create routes with these waypoints. The GPS will guide you from one waypoint to the next indicating current direction and distance. You can save 50 routes.
  • Back to start: This feature helps you to travel all the way back to the starting point of your trip.
  • Stores up to 100 waypoints with name (up to 8 characters) and icon (choice of more than 30 symbols).
  • Stores up to 13'000 trackpoints of the most recent travelled path (tracking) and 1'000 laps.
  • Supports metric and U.S. units.

To table of contents

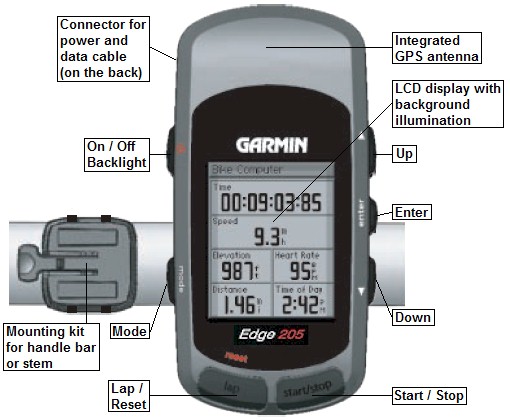

GARMIN Edge 205 overview:

Buttons and connectors of the GARMIN Edge 205

To table of contents


Main pages of the GARMIN Edge 205:

Bike Computer 1 Bike Computer 2 Map Virtual Partner
GARMIN Edge 205 bike computer 1 GARMIN Edge 205 bike computer 2 GARMIN Edge 205 map GARMIN Edge 205 virtual partner
Choose the number of data fields and your preferred value for each of the data fields for both bike computers. For the available values see list below.
In this example, the following values are shown:
  • Duration of this training unit
  • Current speed
  • Travelled distance
  • Current time
  • Distance to go to the final destination
  • Estimated time to go to final destination
  • Calories burned during this training unit
  • Current elevation
Choose the number of data fields and your preferred value for each of the data fields for both bike computers. For the available values see list below.
In this example, the following values are shown:
  • Duration of this training unit
  • Distance to destination
  • Estimated remaining time to travel until destination
  • Distance to the next waypoint
  • Maximum speed
  • Map with orientation (could be set to either north up or moving direction up)
  • Travelled path as dotted line (track)
  • User defined waypoints ("START", "001")
  • Current position (black triangle)
  • Current scale
  • Duration of this training unit
  • Current speed
  • Travelled distance
  • Distance between you and your virtual partner



Compass Navigation Satellites Setup Menu
GARMIN Edge 205 compass GARMIN Edge 205 Navigation GARMIN Edge 205 satellites GARMIN Edge 205 setup menu
  • Distance to final destination
  • Estimated travel time to final destination
  • Direction to the next waypoint or the final destination
  • Save current location as a waypoint
  • Find waypoint
  • Create or activate a route
  • Display informationen about the status of the GPS and the current position of the satellites
  • Status bar with: Battery indicator and GPS status
  • Accuracy of current position information
  • Current position of the satellites in the sky
  • Strength of satellites' signals
  • Number of the visible satellites
  • Data fields (number and values)
  • System settings (GPS receiver, language, tones etc)
  • 10 user profiles (gender, date of birth, weight; used to compute the calories burned)
  • 3 bike profiles (weight, sensors, size of wheels and tires)
  • 5 heart rate zones
  • Settings for data recording (track und heart rate)



Bike Profile Alerts Interval Workout
GARMIN Edge 205 bike profile GARMIN Edge 205 alerts GARMIN Edge 205 interval workout
  • Bike
  • Weight in kg
  • Time and distance alerts
  • Speed alerts (lower and upper limit)
Compose simple or complex workouts with the following elements:
  • Distance plus rest time
  • Distance plus rest distance
  • Time plus rest time
  • Time plus rest distance


Data fields on pages with customer selectable values:

Value Explanation
Calories Amount of calories burned during this training unit
Distance Distance traveled during this training unit
Distance - Lap Distance traveled in the current lap
Distance - Last Lap Distance of last completed lap
Distance - Paused Distance covered while timer in auto pause mode
Elevation Distance above sea level
GPS Accuracy Accuracy of current position information
Grade Inclination or declination, calculation based on distance and elevation gain or loss
Heading Current direction of movement
Laps Number of completed laps during this training unit
Speed Current speed
Speed - Average Average speed during this training unit
Speed - Lap Average speed during this lap
Speed - Maximum Maximum speed during this training unit
Speed Zone Current speed zone (based on user defined speed zones, rsp. on the current training program)
Sunrise Time of the theoretical sunrise at the current location
Sunset Time of the theoretical sunset at the current location
Time Elapsed time since the start of the current training unit
Time - Average Lap Average time to complete the laps so far
Time - Lap Elapsed time since the start of the current lap
Time - Last Lap Time to complete the last completed lap
Time - Paused Time elapsed while timer in auto pause mode
Time of day Current time

To table of contents


Training Center:

A CDrom with the program "Training Center" is included with the Edge 205. The software requires a PC with Windows 2000, XP or Vista, a CDrom drive and a USB connector or an Intel-based Mac or PowerPC (G3 or newer) running OS X 10.4 or later with a CDrom drive and a USB connector. Training Center provides the following features:

Examples:

Hint: Click on the images for an enlargement

Training Center user profile Training Center overview graphics Training Center overview graphics
User profile Overview graphics Overview graphics
Username, gender, weight, date of birth, speed zones etc. Calendar, logs, track, graphical representation for elevation and pace Calendar, logs, track, graphical representation for grade and speed
Training Center overview totals Training Center graph speed over time Training Center detailed map
Overview values Graph speed over time Detailed map with track
Calendar, logs, totals, graphical representation Graphical representation speed over time If you own a map with detailed information (e.g MapSource MetroGuide or Swiss Topo), you can display the track on these maps as well
Training Center training schedule Training Center workout Training Center workout
Training schedule Workout (example 1) Workout (example 2)
The Training Center helps you to manage work outs and training schedules.

To table of contents


Price:

To table of contents


Options:

Power supply without USB cable Add item to shopping basket CHF 22 / EUR 19 [Picture and details]
USB cable for data exchange and power supply
(One such cable comes with the Edge 205)
Add item to shopping basket CHF 15 / EUR 13 [Picture and details]
Power cord for car cigarette lighter Add item to shopping basket CHF 39 / EUR 34 [Picture and details]
Additional mounting kit
(Such a mounting kit comes with the Edge 205)
Add item to shopping basket CHF 17 / EUR 15 [Picture and details]
Soft case Add item to shopping basket CHF 28 / EUR 24 [Picture and details]

All options for the GARMIN Edge 205 in detail.

MapSource, various CDroms with world or country map (requires a Windows PC and a cable for data exchange)

To table of contents


Downloads:

Here we provide additional documentation and software updates related to the Edge 205.

Get Acrobat Reader If Adobe Acrobat Reader is not installed on your computer, you may download and install it for free.

To table of contents


Order:

To order options for GARMIN Edge 205 please:

  1. Click on the price or the shopping basket symbol Show shopping basket to add the item you wish to purchase to the shopping basket.
  2. If the shopping basket does not work, please use this form.

Please read our terms and conditions.

To table of contents


Specifications and packaging of the products are subject to change without notice.
